About the product

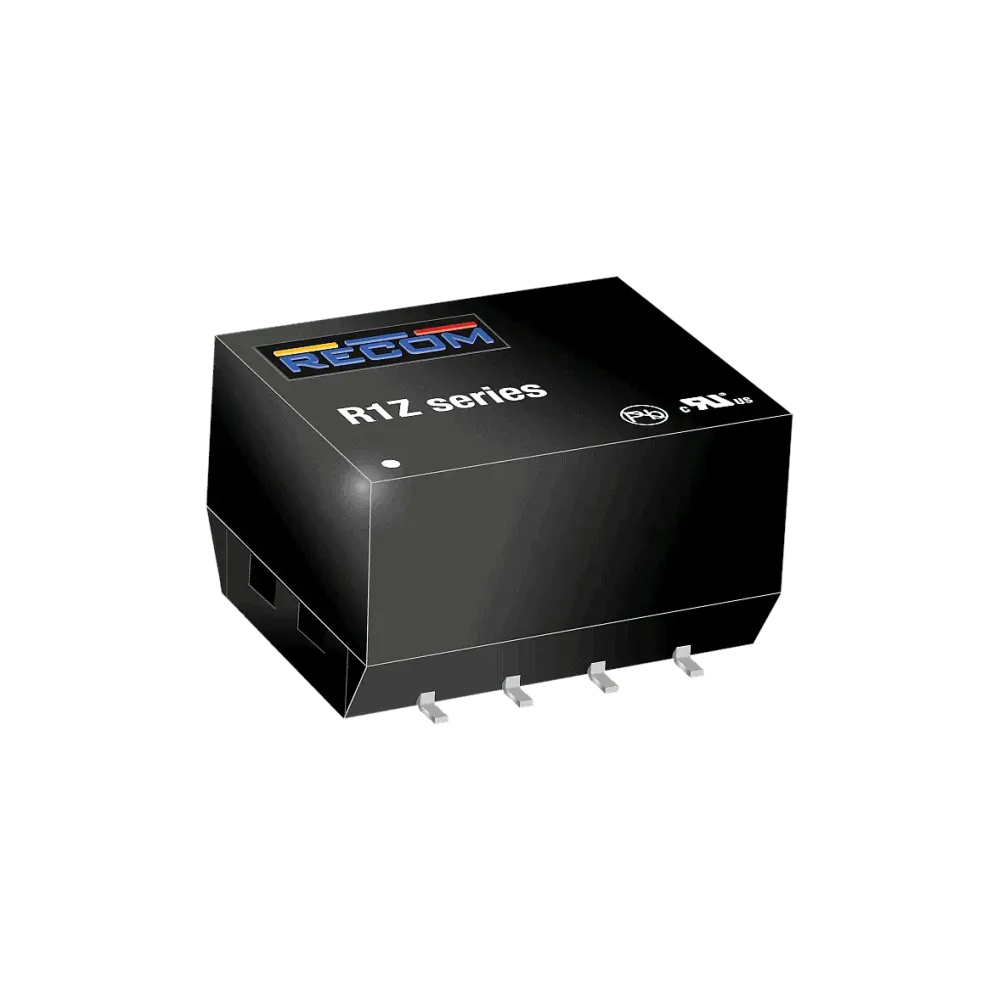

The R1Z series DC/DC converter is designed to isolate or convert DC power rails when an SMD format with regulated output is required, although it is no larger than a standard unregulated SMD converter.
Technical data
- 1kVDC/1s insulation
- SMD housing type
- UL94V-0 Housing material
- Optional permanent short-circuit protection
- Toroidal magnetics
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Height | 8.7 mm |
| Width | 10.7 mm |
| Output current | 200000 mA |
| Length | 15.24 mm |
| Regulation | Regulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV, Medical |
| Output voltage (VDC) | 5 V |
| Design | SMD |
