Item ID: 49077

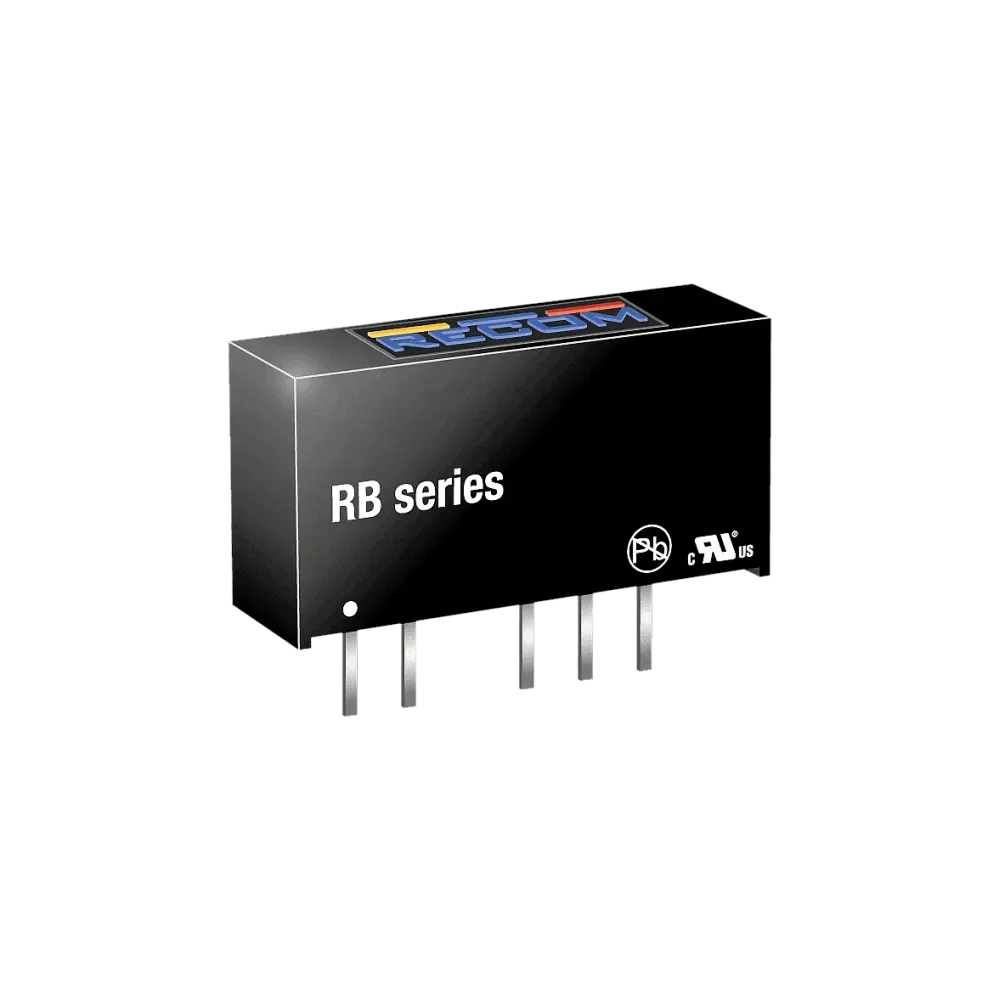

1W DC/DC converter, input 12V +/-10%, output +12V/+42mA / -12V/-42mA, SIP7
About the product
The RB series DC/DC converters are designed for isolating or converting DC busbars in general purpose applications. Although it is cost effective, it does not compromise on features and offers 1KVDC/1s or 2kVDC/1s isolation, an operating temperature range of -40°C to +85°C and optional continuous short circuit protection.
Technical data
- Power sharing for versions with two outputs
- 1kVDC/1s or 2kVDC/1s insulation option
- Optional permanent short-circuit protection
- Efficiency of up to 85
- UL94V-0 Housing material
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Output current | +42/-42 mA |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 12 V |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Output voltage (VDC) | 12 V |
| Power | 1 W |
| Application | ITE/AV |
| Design | SIP7 |
