About the product

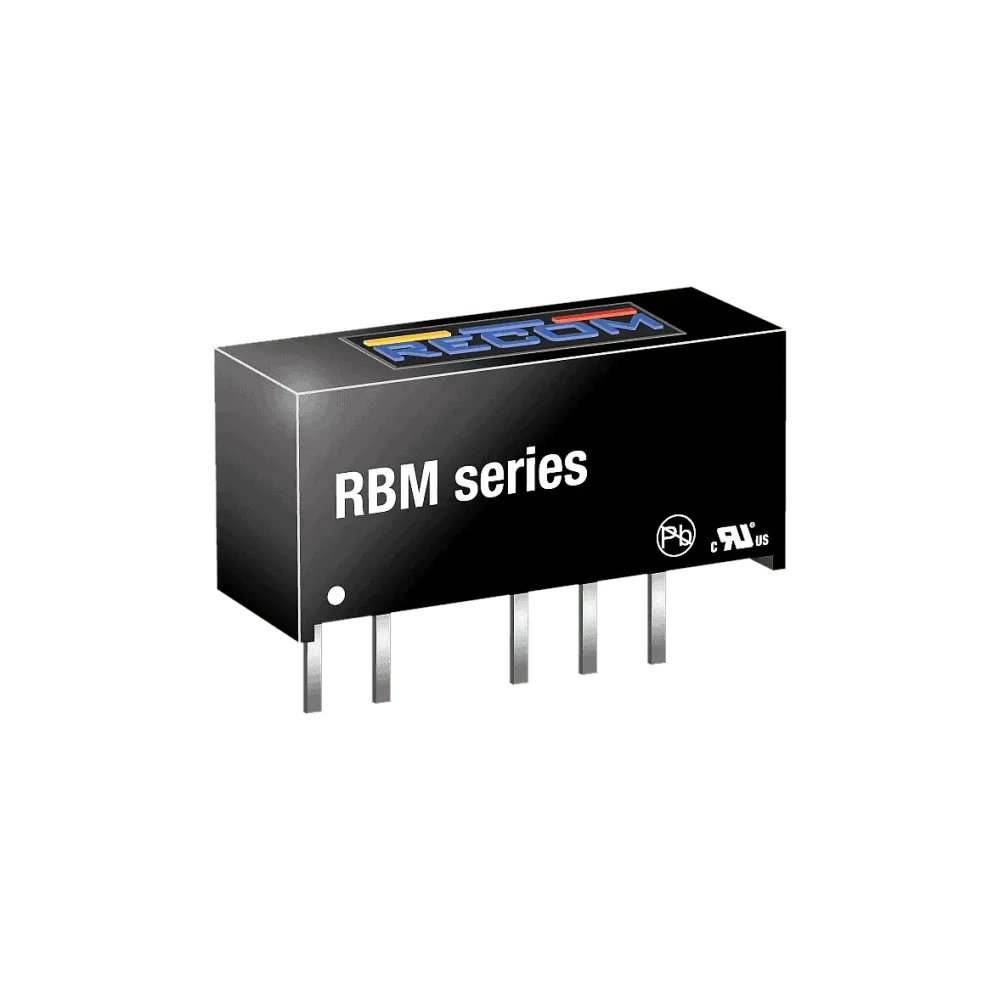

The RBM Micro Size DC/DC converter complements Recom's industrial converter range. Commonly used for distributed PCB power supply systems, this range combines small package size, high efficiency, 3kVDC isolation and low output ripple. The extended operating temperature range of -40°C to +85°C is a standard feature. The full rated power can be drawn from a single pin of this dual output converter, provided it does not exceed 1Watt.
Technical data
- SIP-6 housing in micro format
- Pin assignment according to industry standard
- Power sharing for the version with two outputs
- 3kVDC/1S basic insulation
- Optional permanent short-circuit protection
- Efficiency of up to 84
Product specifications
| Manufacturer | Recom |
| I/O isolation | 3000 VDC |
| Length | 16.55 mm |
| Height | 7.7 mm |
| Output current | 200000 mA |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | SIP6 |
