About the product

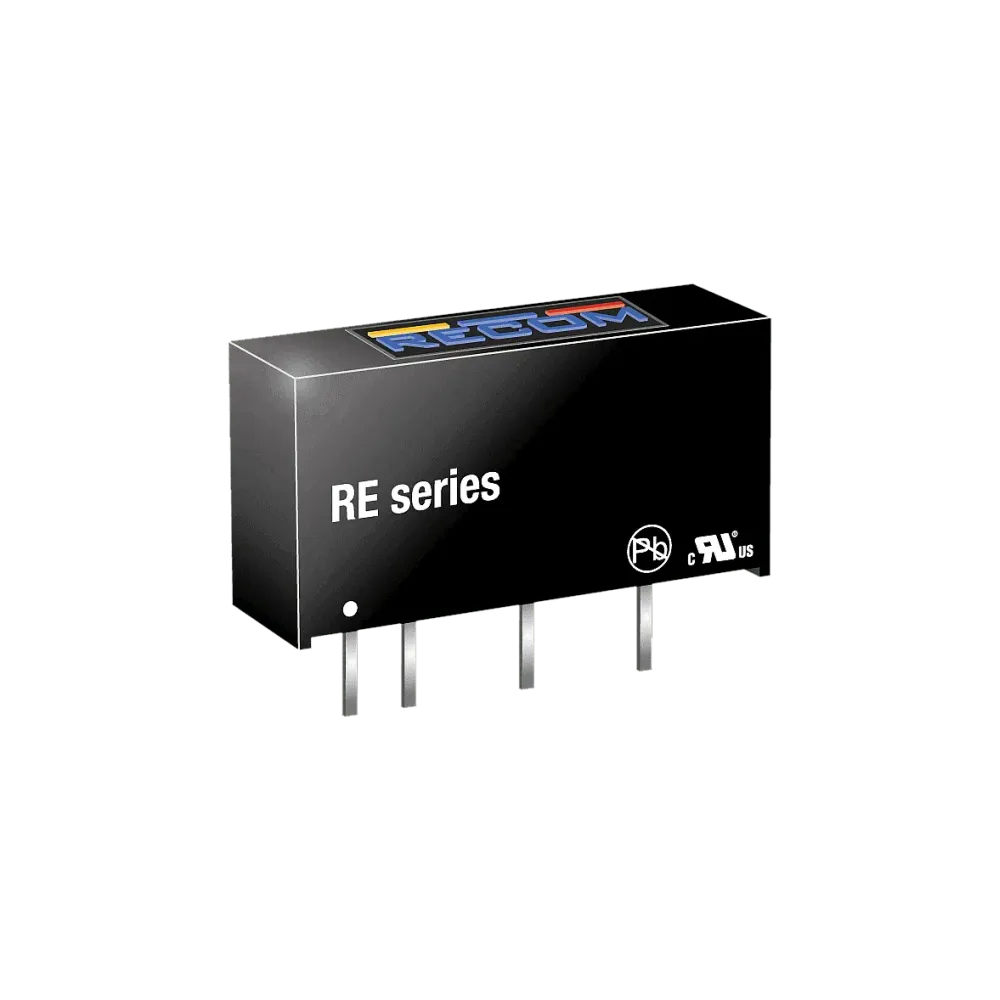

The RE series DC/DC converters are typically used in general power isolation and voltage matching applications and have a full industrial operating temperature range of -40°C to +85°C without derating.
Technical data
- Pin assignment according to industry standard
- 1kVDC/1s or 2kVDC/1s insulation option
- Efficiency of up to 85
- Optional permanent short-circuit protection
- Fully encapsulated
- UL94V-0 Housing material
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Output current | 200000 mA |
| Nominal input voltage (VDC) | 24 V |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | SIP7 |
