About the product

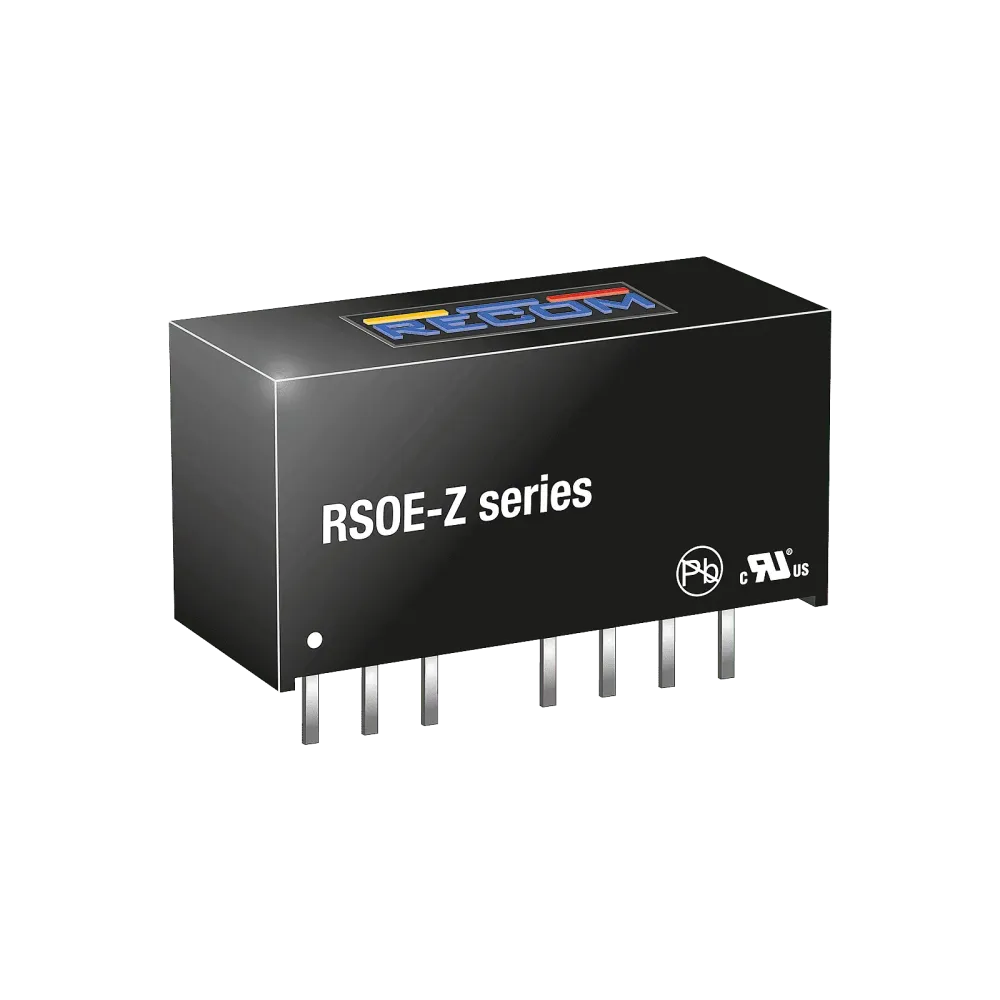

The RSOE-Z is a cost-effective isolated, regulated and short-circuit proof DC/DC converter designed for industrial applications. A compact SIP8 package, 4:1 input, 2kVDC isolation and a wide operating temperature range of -40°C to +80°C without derating make the RSOE-Z series ideal for industrial, transportation and general on-board 5V power supplies. Class A industrial EMC levels can be met with a simple Pi filter and the converters are supplied with a three-year warranty.
Technical data
- 4:1 wide entrance area
- 2kVDC/1 second Insulation
- Operating temperature from -40°C to +80°C at full load
- Pin assignment according to industry standard (SIP8)
- EN/UL62368 and UL60950 certified, CB report
- Cost-effective
Product specifications
| Manufacturer | Recom |
| Design | SIP8 |
| Length | 21.8 mm |
| Output current | 200000 mA |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Power | 1 W |
| Output voltage (VDC) | 5 V |
| I/O isolation | 2000 VDC |
Data sheets
