About the product

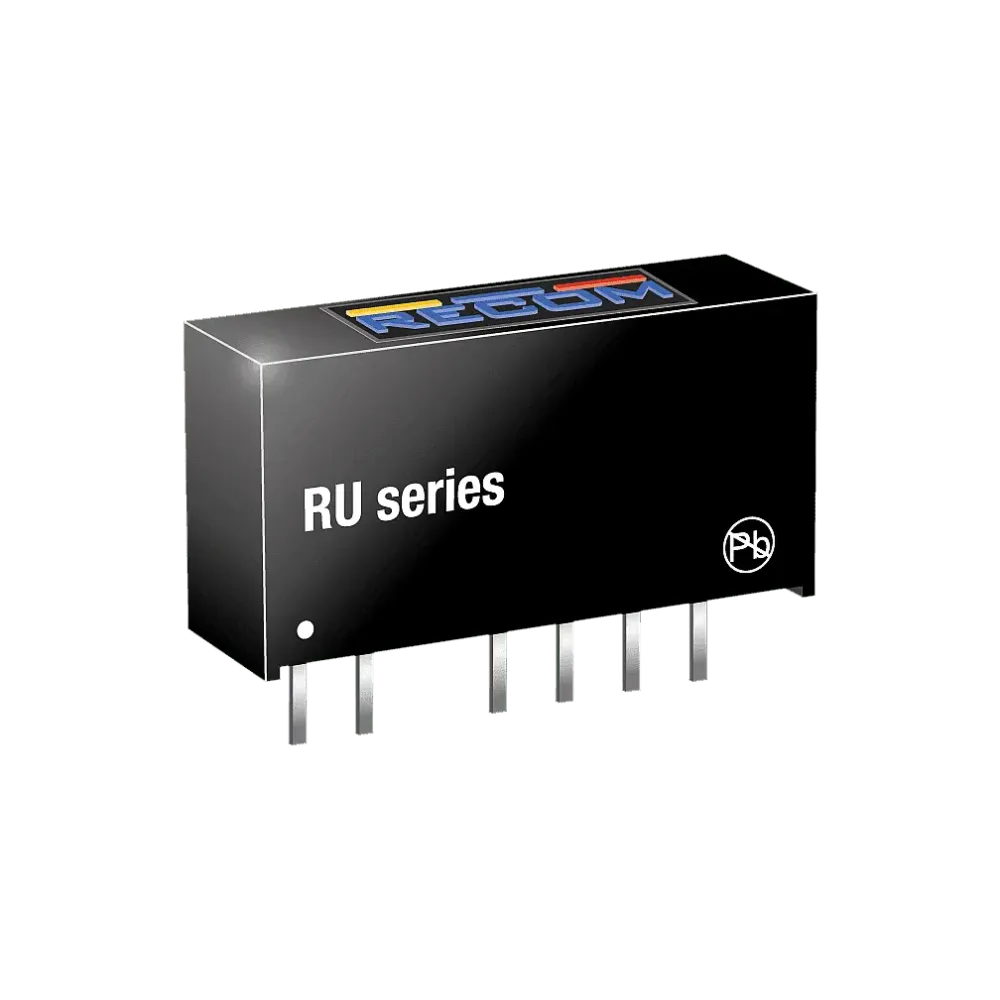

The RU DC/DC converter offers two independent isolated outputs. Typical applications are multi-channel circuits where isolation between the channels is also required. The RUM offers similar specifications in a miniature package for applications where space is at a premium. Both converters offer input/output isolation of 1 kVDC and output isolation of 1 kVDC.
The /H versions offer 2kVDC isolation between input and outputs.
Technical data
- Two independent outputs
- 1kVDC or 2kVDC input/output Basic insulation
- 1kVDC output/output isolation
- Power sharing at the outputs
- Standard and miniature versions
- Optionally still short-circuit-proof
- Efficiency of up to 76
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Output current | 100/100 mA |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Regulation | Regulated |
| Width | 6 mm |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Output voltage (VDC) | 5 V |
| Design | SIP7 |
