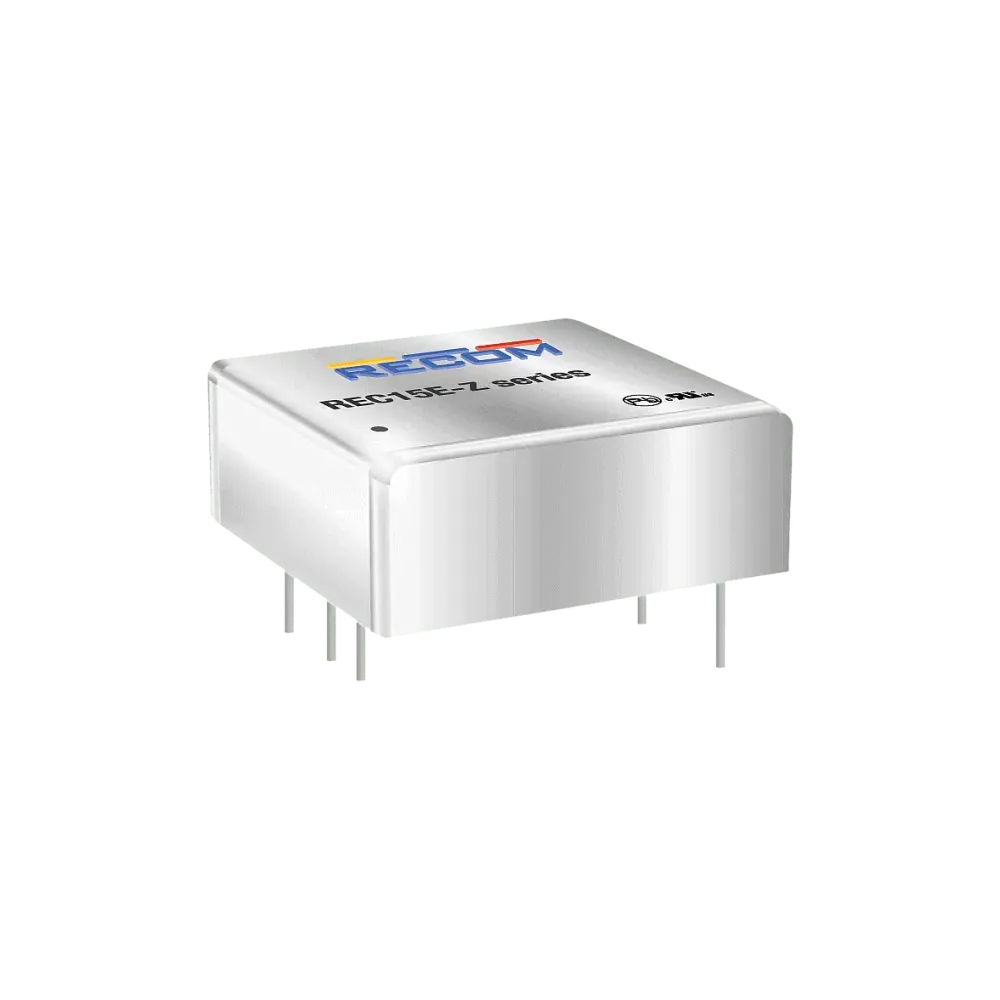

15W DC/DC converter, input 9...36V, output 4.5...5.5V/3000mA, 1″x1″

The REC15E-Z series are DC/DC converters with an input voltage range of 4:1 and an output of 15 W in a 1 x 1 housing. Despite their low cost, the converters are fully specified devices with output currents up to 4 A, no minimum load, 1.6 kVDC isolation, high efficiency and low ripple/noise figure. The inputs are protected against transients of up to 100 V and have UVLO so that the primary supply can start up safely. The single or dual outputs are continuously protected against short circuit and overload and can drive high capacitive loads. The REC15E-Z series will be used in many cost-sensitive applications where PCB space is limited.

Technical data

• Wide input voltage range of 4:1
• Compact 1 "x1" housing
• Efficiency of up to 90%
• Wide operating temperature range from -40°C to +75°C without derating
• Continuous short-circuit protection
