About the product

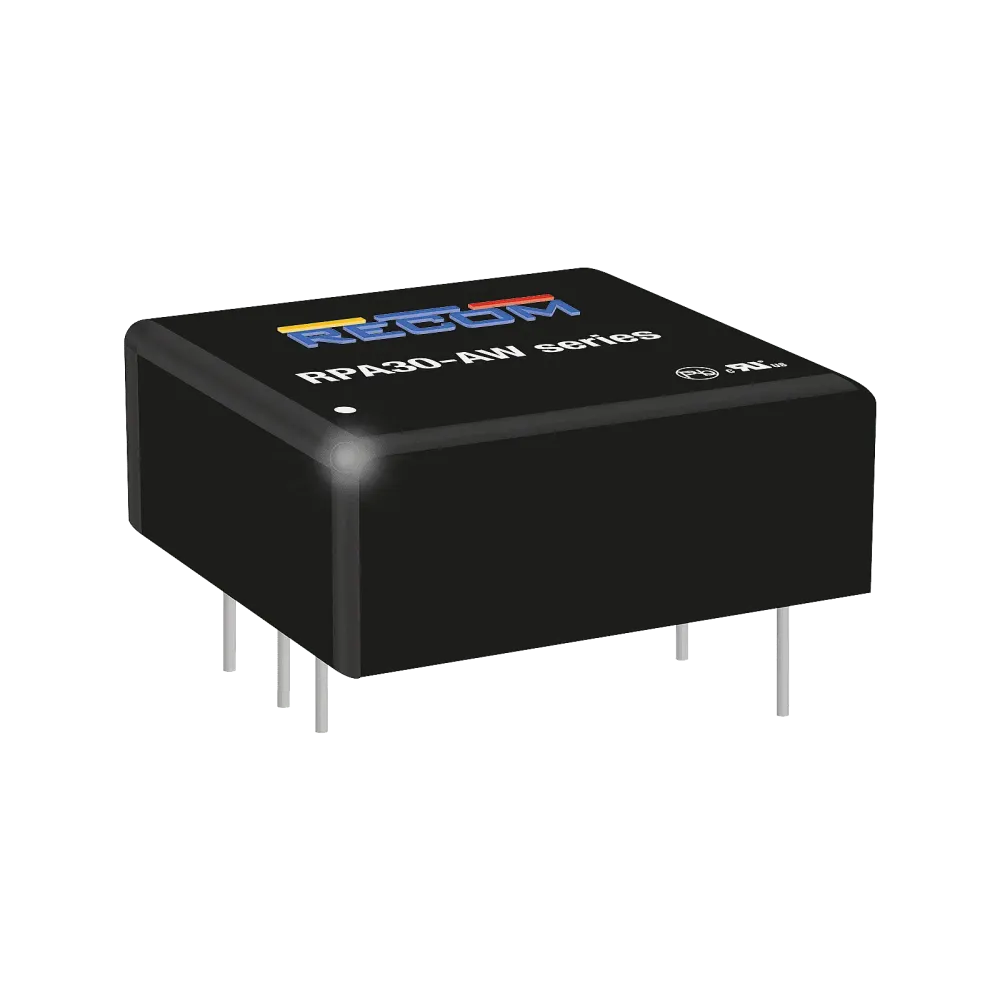

The RPA30-AW series are high power density 30W DC/DC converters with a wide input voltage range in a 1 "x1" industry standard package. Despite their small size, the RPA30-AW converters are fully specified devices with output currents up to 7.5A, up to 89% efficiency, no minimum load, 1600VDC isolation, tight regulation and low ripple/noise. The outputs are also fully protected against over temperature, short circuit, over current and over voltage and the single output version offers a trim range of ±10%. A heatsink option is available to extend the operating temperature range up to 56°C without derating. The converters are UL and EN50155 certified and are used in many railroad and industrial applications where board space is at a premium.
Technical data
- 4:1 Wide input voltage range
- 1.6kVDC insulation
- UL, IEC/EN60950-1 & EN50155 certified
- Efficiency of up to 89
- OVP, OCP & OTP
- Operating temperature -40°C to +105°C with derating
Product specifications
| Manufacturer | Recom |
| Design | 1×1 inch |
| Output current | +1000/-1000 mA |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 25.4 mm |
| Output voltage (VDC) | 15 V |
| Width | 25.4 mm |
| Power | 30 W |
| I/O isolation | 1600 VDC |
