About the product

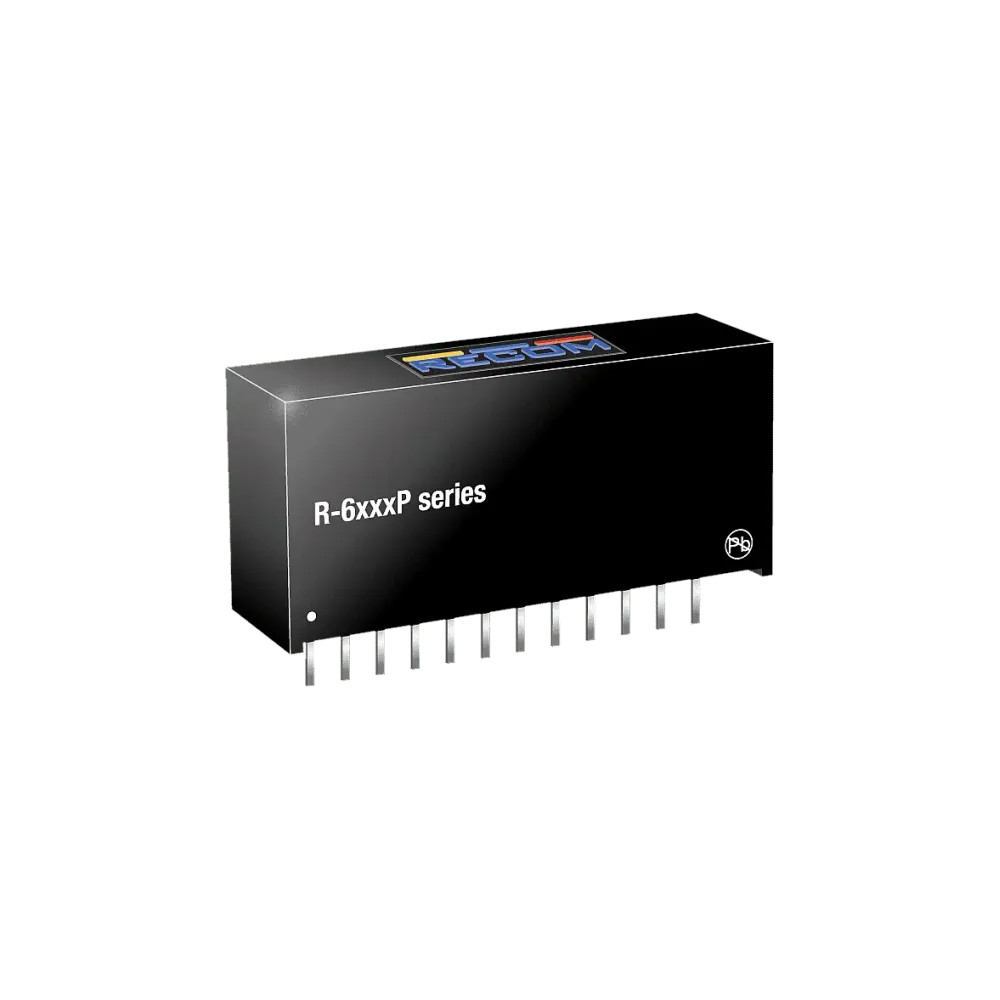

The R-6xxx series is a high-performance switching regulator with 12 pins in a SIP housing (single inline package) from 1.5 V to 15 V (18 V) and 1.1 A to 2 A. Synchronous rectification achieves an outstanding efficiency of up to 97%. The short-circuit protection reduces the short-circuit input current to less than 50mA.
Technical data
- Not isolated
- Adjustable output voltage
- 1-2AMP adjustable positive step-down regulator with integrated switching regulator
- Internal short-circuit protection
- ON/OFF control (ground off)
- Efficiency of up to 97
- Positive to negative
Product specifications
| Height | 15 mm |
| Design | SIP12 |
| Output voltage (VDC) | 3.3-15 V |
| I/O isolation | not isolated |
| Length | 32.2 mm |
| Width | 9.1 mm |
| Nominal input voltage (VDC) | 15-24 V |
| Regulation | Regulated |
| Power | 30 W |
| Output current | 2000 mA |
| Manufacturer | Recom |
| Output voltage range (VDC) | 3.3-15 V |
