About the product

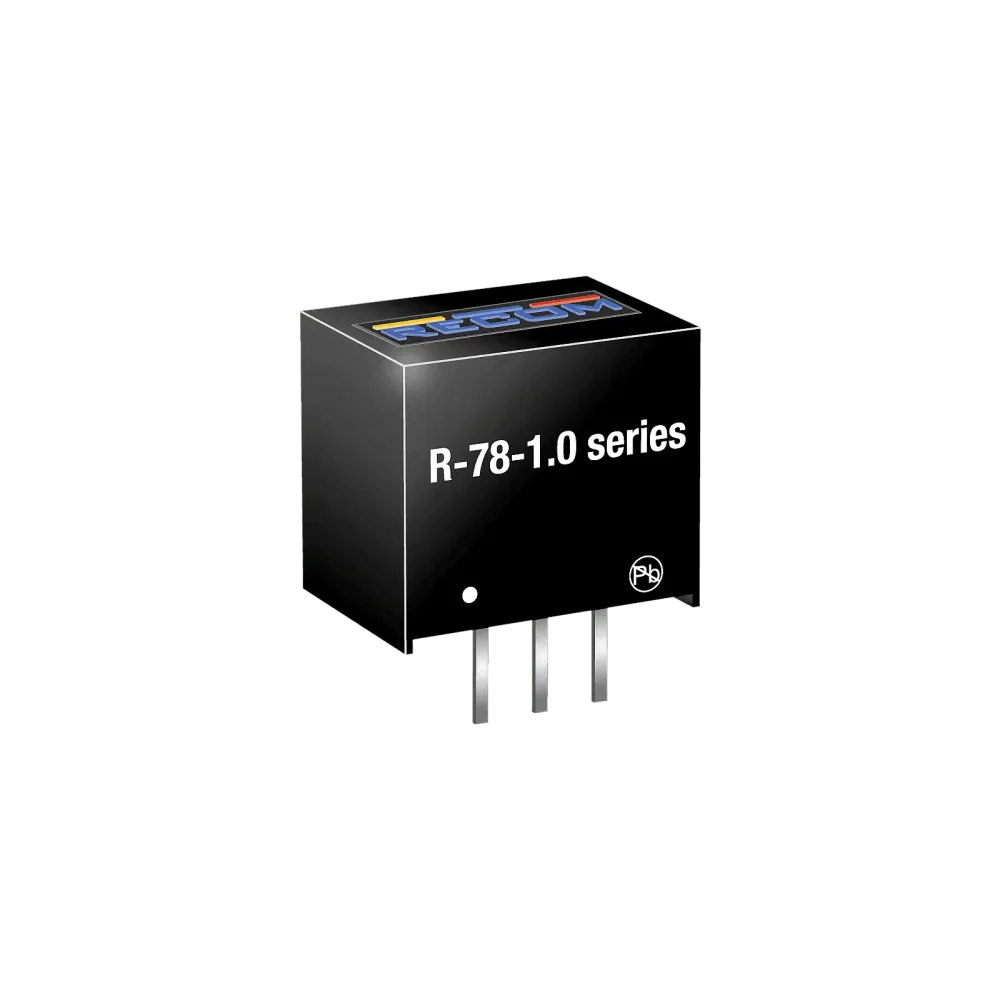

The switching regulators of the R-78xx-1.0 series are ideal as a replacement for 1-amp linear regulators of the 78xx series and are pin-compatible. With an efficiency of up to 94%, very little energy is wasted in the form of heat, so that no heat sinks with their additional space and installation costs are required.
Technical data
- Efficiency of up to 94%, no need for heat sinks
- Pin assignment compatible with LM78XX lines
- Low profile (L/W/H=11.5 x 7.5 x 10.2mm)
- Large entrance area
- Short-circuit protection, thermal shutdown
- Low ripple and noise
- IEC/EN60950-1-zertifiziert
Product specifications
| Manufacturer | Recom |
| I/O isolation | not isolated |
| Width | 7.55 mm |
| Length | 11.5 mm |
| Nominal input voltage (VDC) | 5-15 V |
| Power | 3.3 W |
| Height | 10.2 mm |
| Regulation | Regulated |
| Output voltage (VDC) | 3.3 V |
| Output current | 1000 mA |
| Design | SIP3 |
