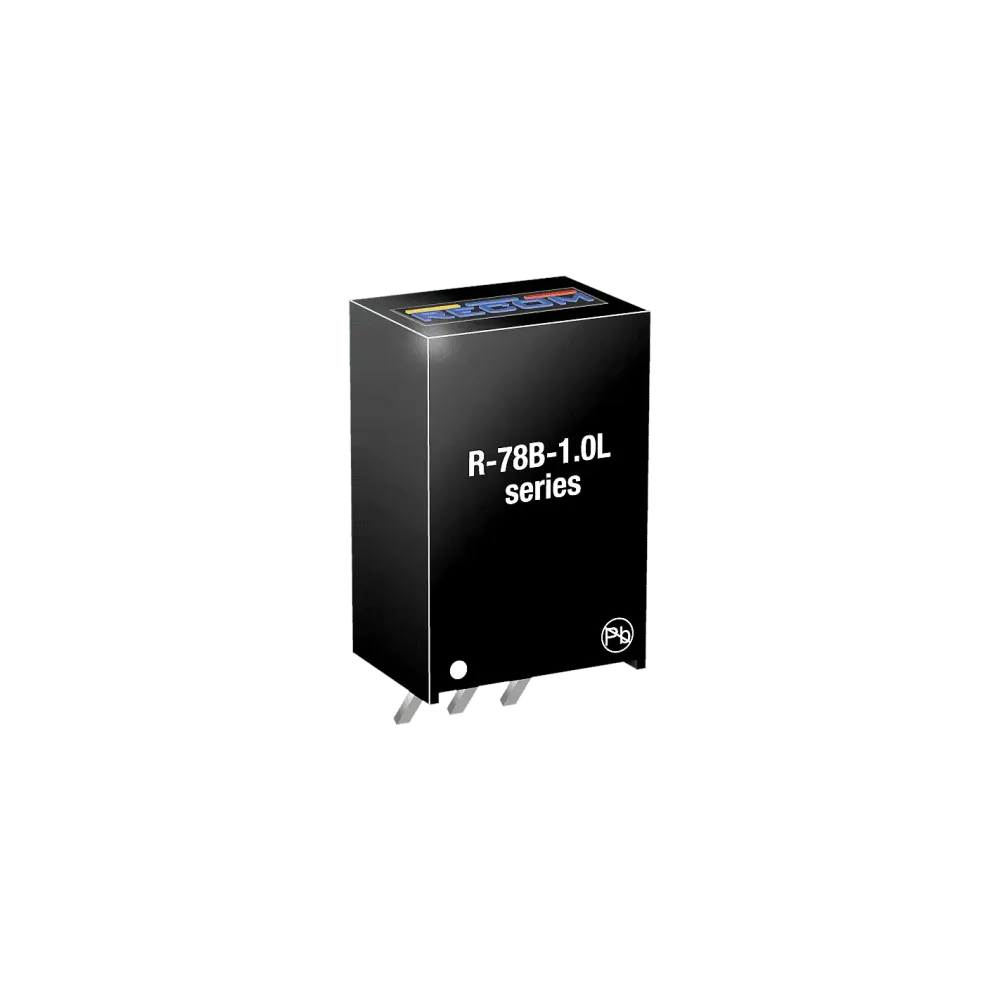

12W DC/DC converter, input 16...32V, output 12V/1000mA, SIP3

The highly efficient switching regulators of the R-78Bxx-1.0 series are ideal as a replacement for the 78xx linear regulators and are pin-compatible. The efficiency of up to 97% means that very little energy is wasted in the form of heat, so there is no need for heat sinks with their additional space and mounting costs. The L version with 90° pins allows direct replacement of lay-flat regulators where height is an important consideration. Low ripple and noise values and a short-circuit input current of typically only 10mA round off the specifications of this versatile converter series.

Technical data

• Efficiency of up to 97%, no heat sinks required
• Pin-out compatible with LM78XX lines
• Low profile (L/W/H=11.5 x 8.5 x 17.5mm)
• Large entrance area
• Short-circuit protection, thermal shutdown
• Low ripple and noise
• "L" version with 90° pins
