About the product

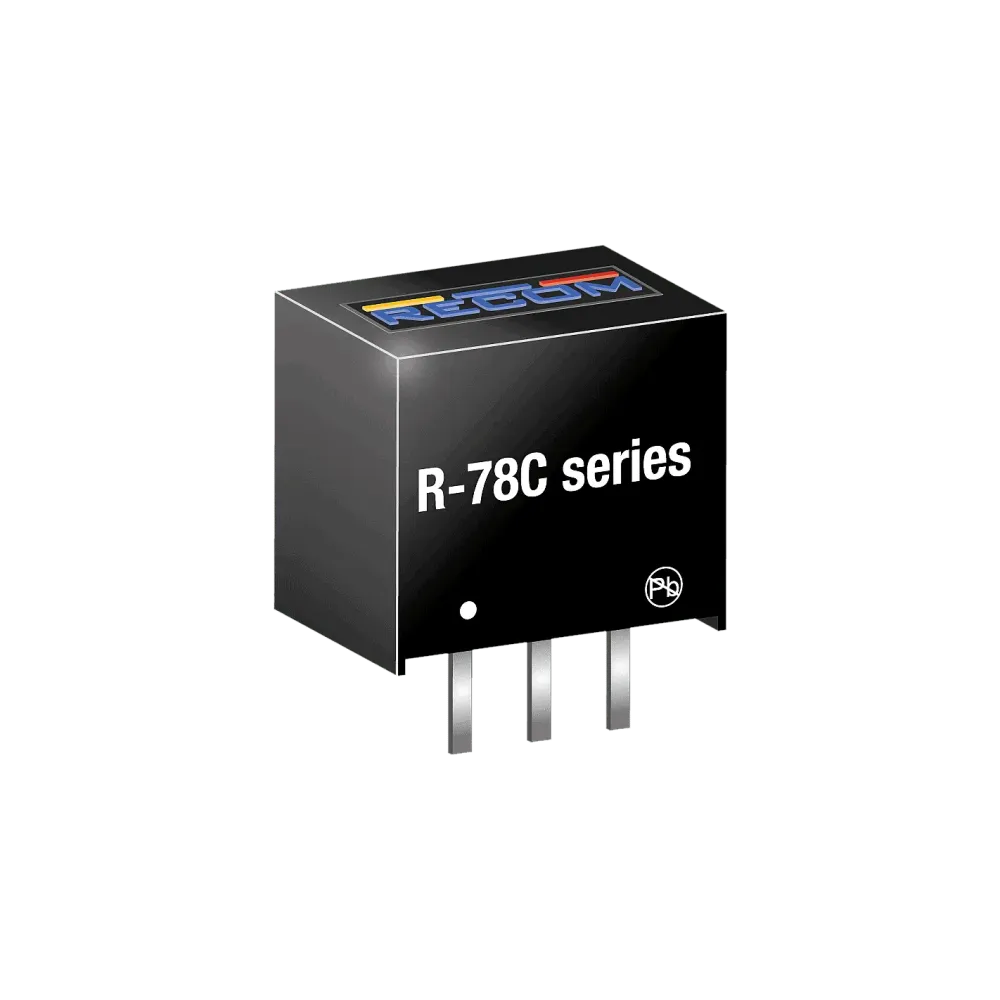

The R-78Cxx-1.0 series switching regulators are ideal as a replacement for 78xx series 1-amp linear regulators and are pin-compatible. An efficiency of up to 96% means that very little energy is wasted in the form of heat, and the high input voltage is a useful feature.
Technical data
- Efficiency of up to 96%, no heat sinks required
- Pin assignment compatible with LM78XX lines
- Low profile (L*W*H=11.6*8.5*10.4mm)
- Large input range (5V - 42V)
- Short-circuit protection, thermal shutdown
- Low ripple and noise
- IEC/EN60950-certified
Product specifications
| Height | 10.4 mm |
| I/O isolation | not isolated |
| Nominal input voltage (VDC) | 24-36 V |
| Width | 8.5 mm |
| Length | 11.5 mm |
| Regulation | Regulated |
| Power | 15 W |
| Output current | 1000 mA |
| Output voltage (VDC) | 15 V |
| Manufacturer | Recom |
| Design | SIP3 |
