About the product

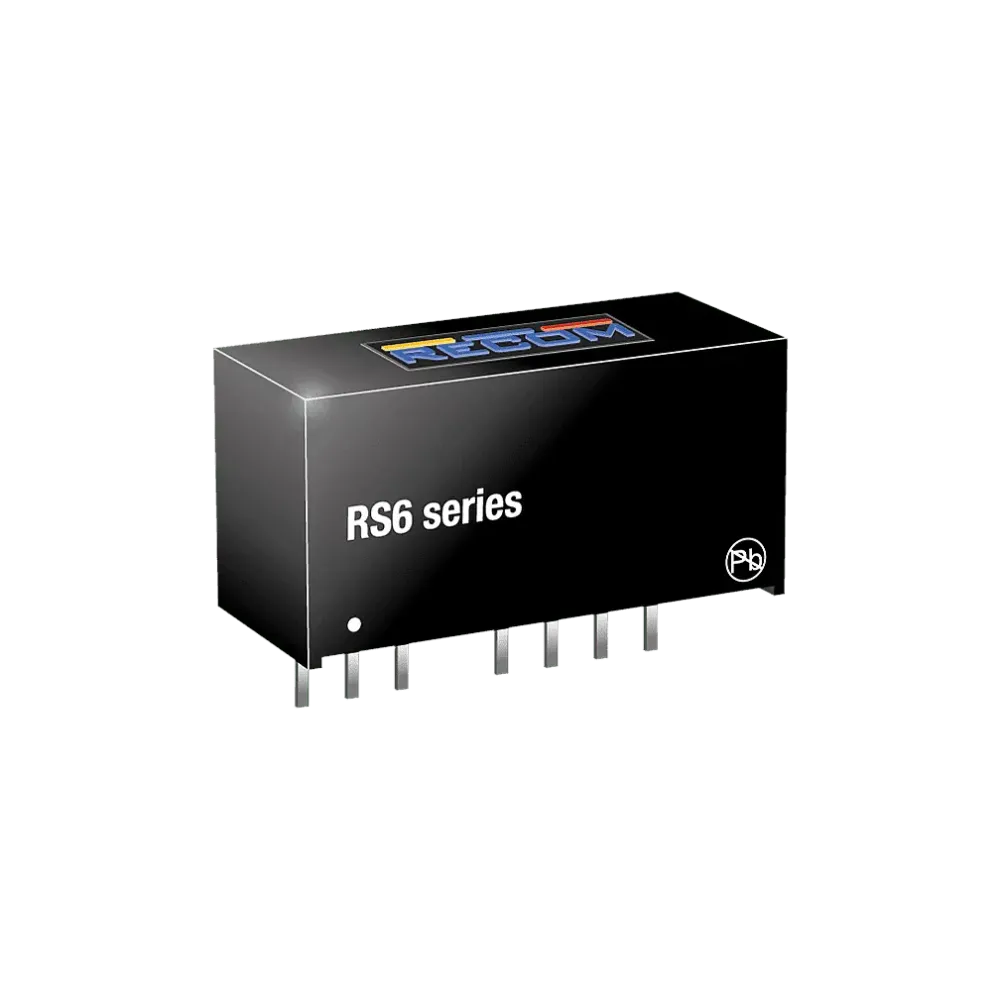

The RS6 series offers a very high power density (2.7 W/cm³), a wide input voltage range and an industrial operating temperature range of -40°C to +75°C without derating. High efficiency, tight regulation, 2kVDC isolation and remote turn-on are just some of the features of this advanced SIP8 6W converter, which is ideal for high density power supply designs in demanding industrial applications.
Technical data
- Highest power density in the SIP8 housing
- 1.6kVDC/1 minute Insulation
- Efficiency of up to 88
- Operating temperature range from -40°C to +75°C at full load
- EN60950 and IEC/EN62368-1 certified
- Pinout according to industry standard
Product specifications
| Manufacturer | Recom |
| Design | SIP8 |
| Output current | 250/250 mA |
| Length | 21.8 mm |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Output voltage (VDC) | 12 V |
| Power | 6 W |
| I/O isolation | 2000 VDC |
