About the product

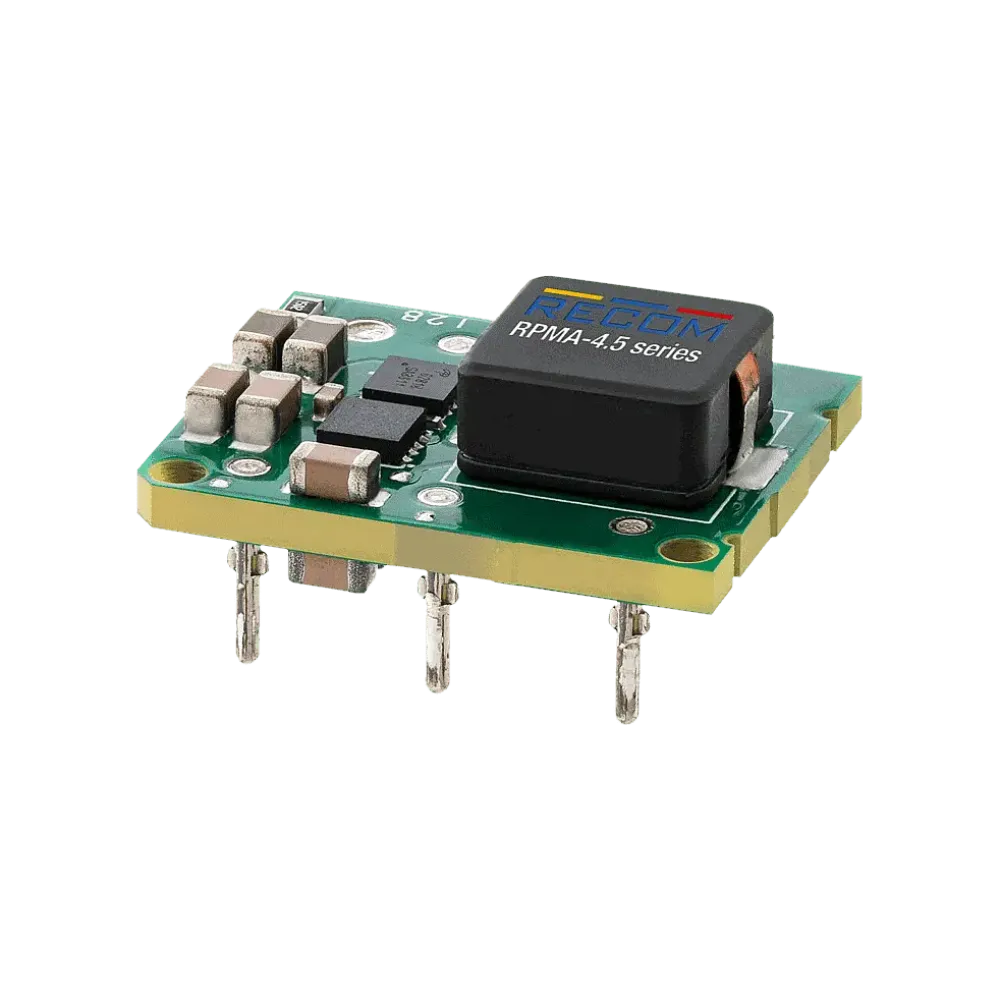

The RPMA5.0-4.5/OF is a highly efficient, non-isolated step-down converter with an output current of up to 4.5A on a footprint of 1/32 brick. The input voltage range is 9-53VDC and the output voltage is trimmable from 5-30VDC via a fixed trimming resistor. Typical applications for these extremely compact, reliable converters include voltage conversion in decentralized power supply architectures of 12, 24, 28, 36 and 48V bus systems for industrial, medical, test and measurement and telecommunications equipment. With an efficiency of up to 98%, the converter operates at temperatures from -40°C to +85°C and comes with RECOM's standard 3-year warranty.
Technical data
- 4.5A industrial-grade, non-isolated DC/DC
- Compact, industry-standard 1/32 brick format
- Efficiency of up to 98
- 9-53V Input voltage
- 5-30V adjustable output voltage
Product specifications
| Manufacturer | Recom |
| Output voltage (VDC) | 5-28 V |
| Design | 1/32 Brick |
| I/O isolation | not isolated |
| Width | 23.4 mm |
| Length | 19.1 mm |
| Height | 9.6 mm |
| Nominal input voltage (VDC) | 12-48 V |
| Output current | 4500 mA |
| Regulation | Regulated |
| Power | 135 W |
| Output voltage range (VDC) | 5-30 V |
Data sheets
