Item ID: 48961

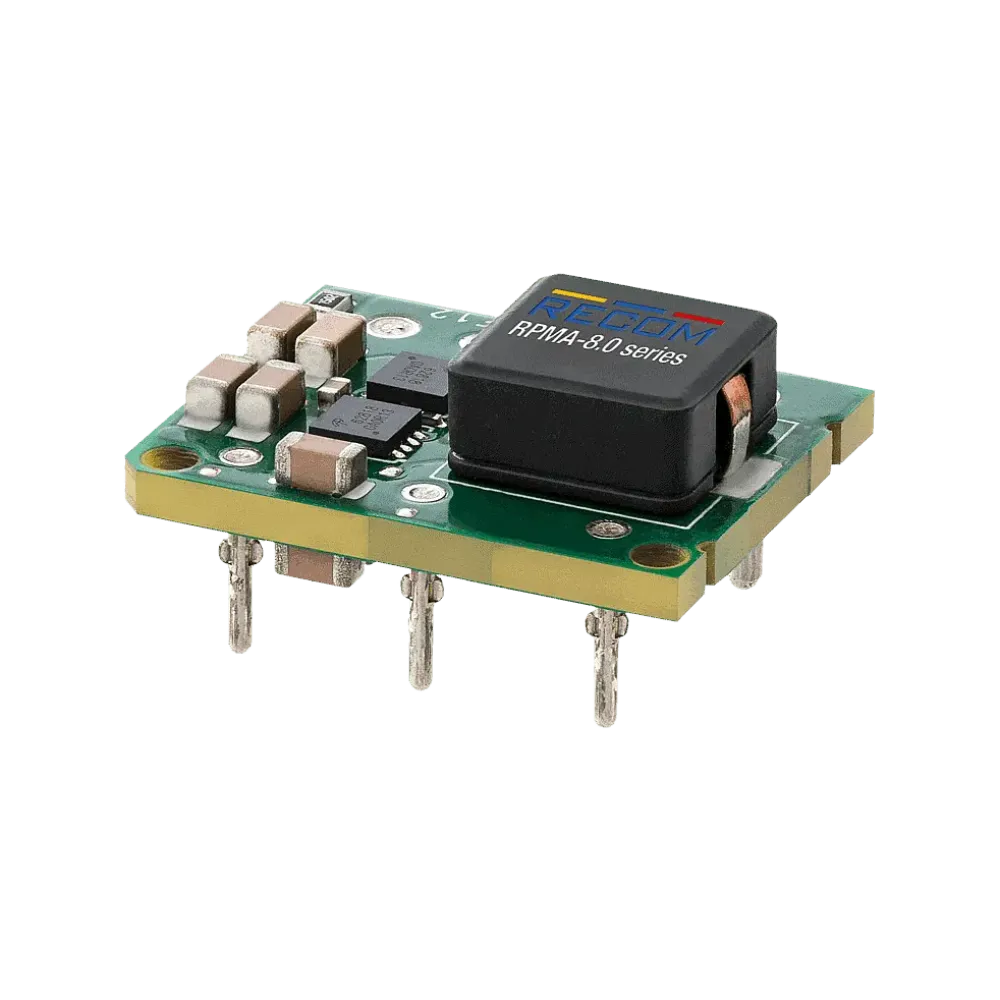

40W DC/DC converter, input 9...53V, output 3.3...16.5V/4500mA, 1/32 brick
About the product
The RPMA5.0-8.0/OF is a high-efficiency, non-isolated step-down converter with an output current of up to 8A and a footprint of 1/32 brick. The input voltage range is 9-53VDC and the output voltage is trimmable from 3.3-16.5VDC via a fixed trimming resistor. Typical applications for these extremely compact, reliable converters include voltage conversion in distributed power supply architectures of 12, 24, 28, 36 and 48V bus systems for industrial, medical, test and measurement and telecommunication equipment. With an efficiency of up to 98%, the converter operates at temperatures from -40°C to +85°C and comes with RECOM's standard 3-year warranty.
Technical data
- 8A non-isolated DC/DC converter in industrial quality
- Compact, industry-standard 1/32 brick format
- Efficiency of up to 98
- 9-53V Input voltage
- 3.3-16.5V adjustable output voltage
Product specifications
| Power | 40 W |
| Output voltage range (VDC) | 3.3-16.5 V |
| Output voltage (VDC) | 3.3-15 V |
| I/O isolation | not isolated |
| Width | 23.4 mm |
| Length | 19.1 mm |
| Height | 9.6 mm |
| Nominal input voltage (VDC) | 12-48 V |
| Output current | 4500 mA |
| Regulation | Regulated |
| Manufacturer | Recom |
| Design | 1/32 Brick |
