About the product

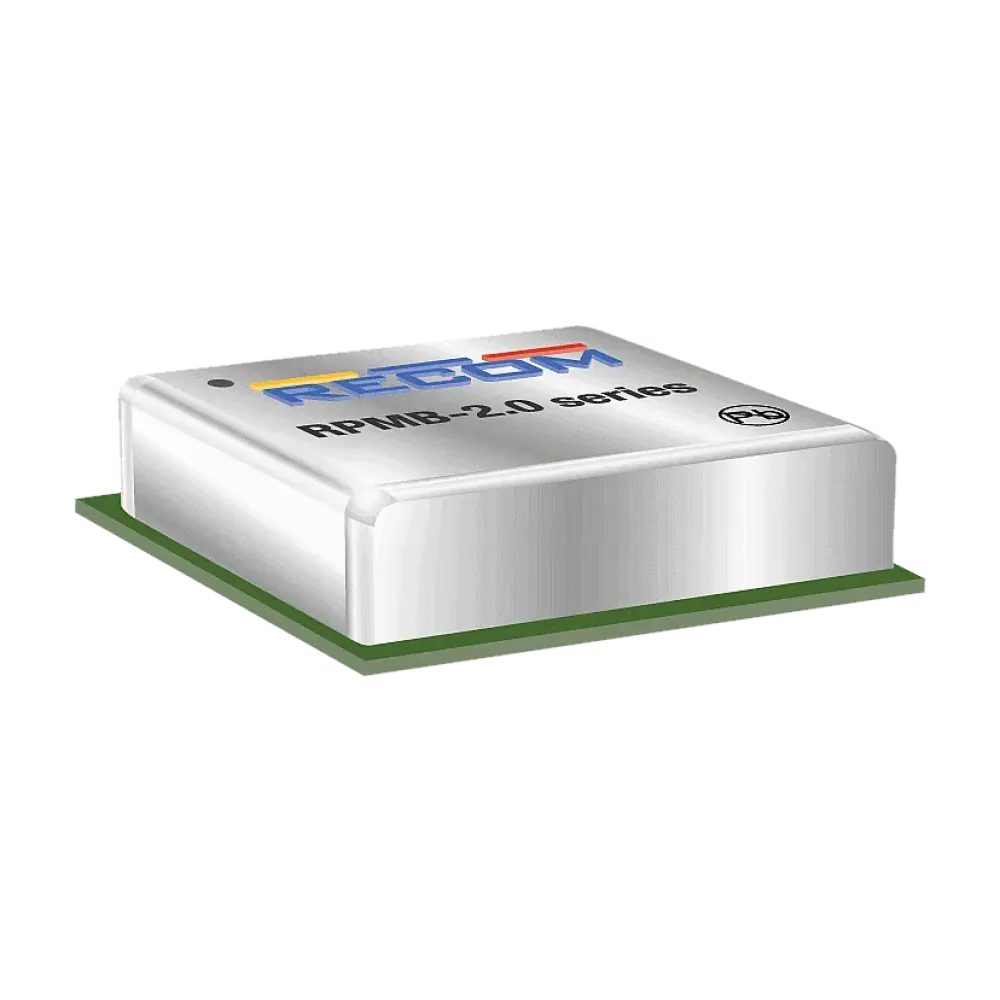

The RPMB-2.0 series is a non-isolated 2A SMD switching regulator power module with up to 36V input voltage. Despite its compact LGA footprint and low profile (12.2×12.2×3.75mm), it offers a full range of features including adjustable output from 1V up to 24V, on/off control, sense and power good output signals. With an efficiency of up to 94%, which remains almost constant over a load range of 5% to 100%, the device can be operated at ambient temperatures of up to +100°C without forced air cooling. The housing is complete with 6-sided shielding for optimum EMC performance and excellent thermal management.
The fully protected module (UVLO, SCP, OCP, OTP) can drive high capacitive loads of up to 0.2F.
Technical data
- 36V 2A SMD power module
- High power density in 12.2×12.2×3.75mm housing
- -40°C to +100°C with derating, convection-cooled
- Efficiency of up to 94
- 6-sided shielding
- Thermally improved 25 pad LGA housing (DOSA-compliant)
Product specifications
| Manufacturer | Recom |
| Output voltage (VDC) | 6.5-36 V |
| Design | LGA |
| I/O isolation | not isolated |
| Height | 3.75 mm |
| Width | 12.19 mm |
| Length | 12.19 mm |
| Nominal input voltage (VDC) | 9-24 V |
| Regulation | Regulated |
| Power | 10 W |
| Output current | 2000 mA |
| Output voltage range (VDC) | 5.5-36 V |
