About the product

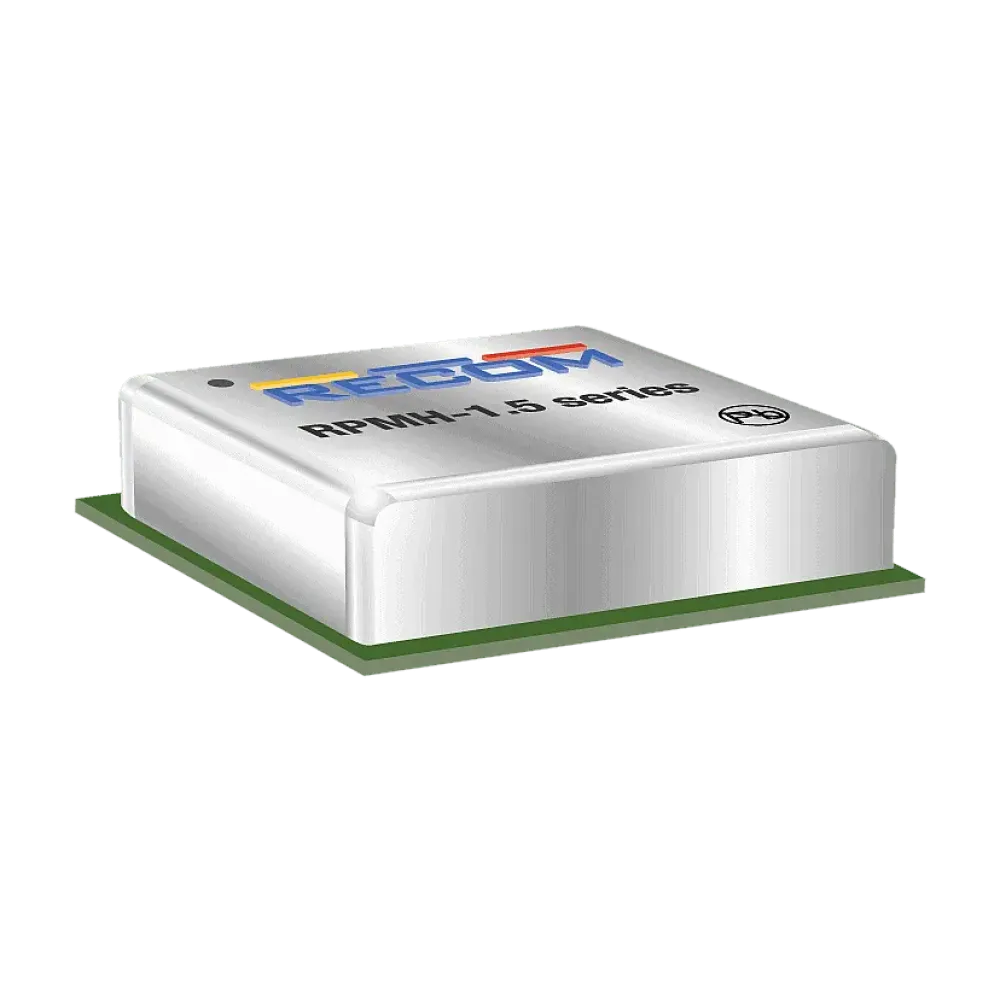

The RPMH-1.5 series is a non-isolated switching regulator power module with a wide input voltage and 1.5A. The module can be operated with an input voltage of up to 60VDC and offers a trimmable output of 2.6 to 28VDC. It is equipped with a range of features including adjustable output voltage, on/off control and power good signals. The ultra-compact module has a profile of just 3.75mm, but with an efficiency of up to 97%, the device can operate at full load in ambient temperatures of up to +100°C and with a power derating of up to 105°C without forced air cooling. The housing is complete with 6-sided shielding for optimum EMC performance and excellent thermal management.
Technical data
- Width Vin 5 to 60VDC
- High power density (LxWxH = 12.19 x 12.19 x 3.75mm)
- Wide operating temperature range -40°C to 100°C at full load
- Efficiency of up to 97%, no heat sinks required
- 6-sided shielding
- Thermally and EMC-optimized LGA housing with 25 pads
- Low profile
Product specifications
| Manufacturer | Recom |
| Output voltage (VDC) | 7.2-12 V |
| Design | LGA |
| I/O isolation | not isolated |
| Height | 3.75 mm |
| Width | 12.19 mm |
| Length | 12.19 mm |
| Output current | 1500 mA |
| Regulation | Regulated |
| Nominal input voltage (VDC) | 24-48 V |
| Power | 18 W |
| Output voltage range (VDC) | 7.2-13.2 V |
