About the product

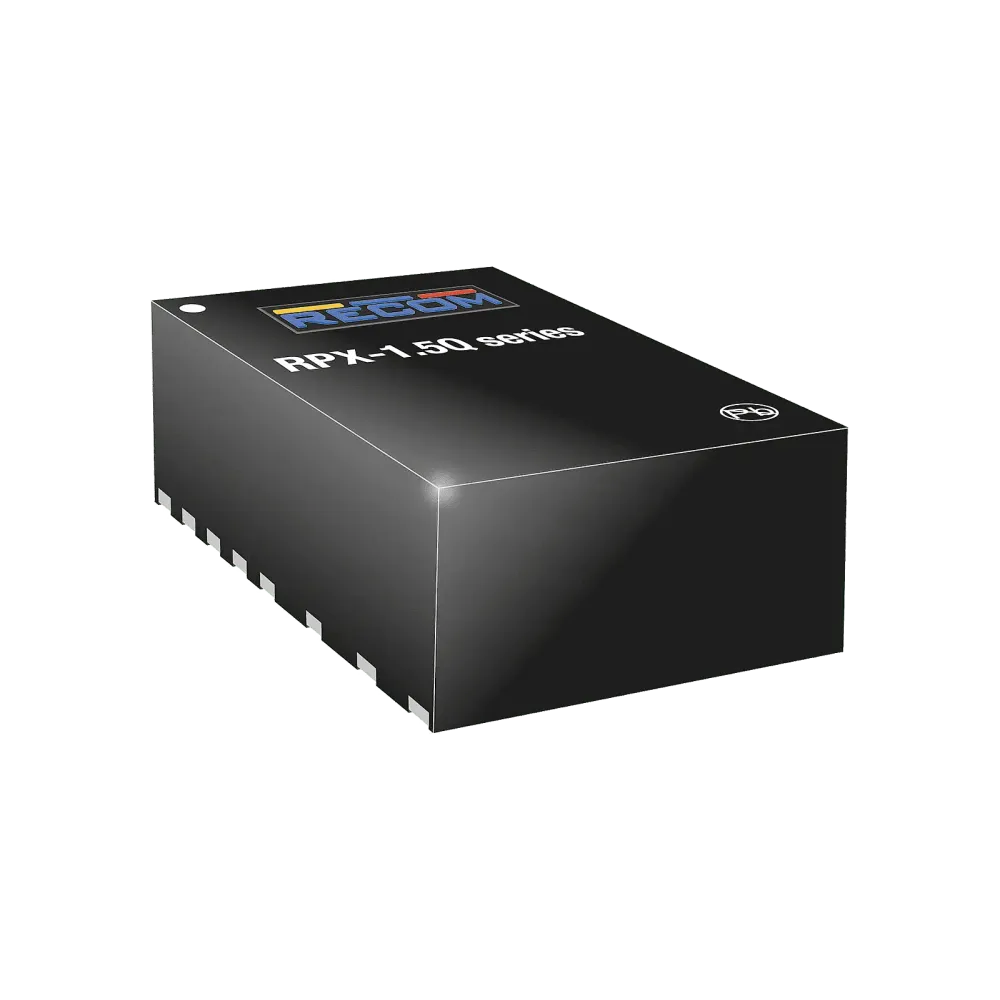

The RPX-1.5Q is an automotive grade step-down converter with integrated inductance in a compact, thermally optimized QFN package measuring 3 x 5 x 1.6mm (a version with wettable edges is available on request). The input range extends from 4 to 36VDC, so that 5V, 12V or 24V supply voltages can be used. The output voltage can be adjusted with two resistors in the range from 0.8 to 30VDC. The output current is up to 1.5A and is fully protected against continuous short circuits, output overcurrent or overtemperature faults.
Technical data
- AEC-Q100-qualified step-down regulator power module with integrated shielded coil
- 36VDC input voltage, 1.5A output current
- SCP, OCP, OTP and UVLO protection
- 3.0 x 5.0 mm flat QFN housing
- Wettable flanks for optical inspection on request
- Enable, power-good, soft-start and sync functions
- Operating temperature from -40 to 125°C
Product specifications
| Manufacturer | Recom |
| Design | QFN |
| Output voltage (VDC) | 1.2-30 V |
| I/O isolation | not isolated |
| Width | 5 mm |
| Length | 3 mm |
| Height | 1.6 mm |
| Input voltage ratio | N/A |
| Nominal input voltage (VDC) | 5-24 V |
| Power | 7.5 W |
| Output current | 1500 mA |
| Regulation | Regulated |
| Output voltage range (VDC) | 0.8-30 V |
