About the product

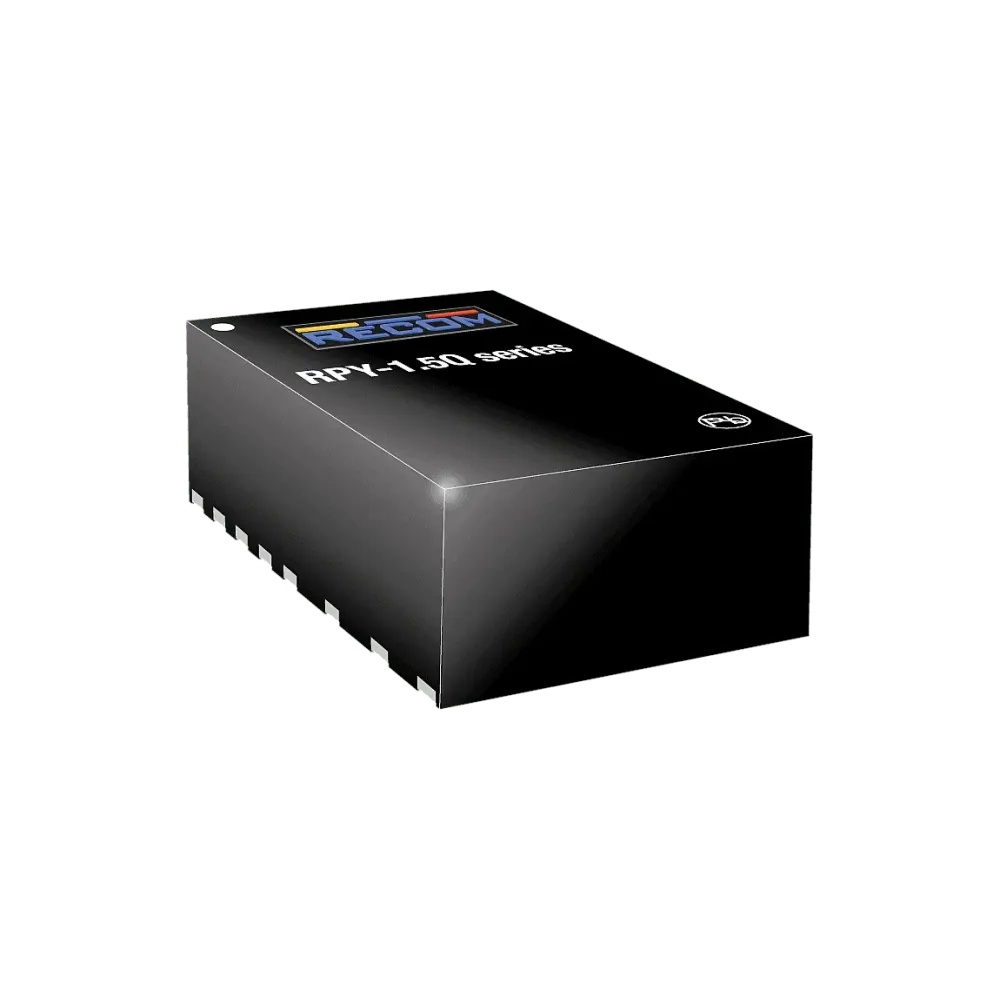

The RPY-1.5Q is an automotive grade constant current source buck regulator designed to operate high power LEDs. The integrated inductor means that a complete LED driver can be realized in a compact, 3 x 5 x 1.6mm, thermally optimized QFN package with a maximum output current of up to 1500mA, which is set with an external measuring resistor. The input voltage range extends from 4 to 36VDC, so that 5V, 12V or 24V supply voltages can be used. The output is fully protected against continuous short circuits, input undervoltage, output overcurrent or overtemperature. A fault indicator signals a thermal shutdown or LED open/short circuit condition. Applications include dimmable LED lighting, visible or IR LED lighting for drones and robotic camera systems or precise high current CC sources for test and measurement purposes.
Technical data
- AEC-Q100-qualified constant current power module with integrated shielded coil
- 36VDC input voltage step-down regulator
- 1.5A output current with 0-100% PWM dimming
- SCP, OCP, OTP and UVLO protection
- 3.0 x 5.0 mm flat QFN housing
- Enable, error, thermal shutdown and soft start functions
- Operating temperature from -40 to 125°C
Product specifications
| Manufacturer | Recom |
| Design | QFN |
| Output voltage (VDC) | 1.2-30 V |
| I/O isolation | not isolated |
| Width | 5 mm |
| Length | 3 mm |
| Height | 1.6 mm |
| Input voltage ratio | N/A |
| Nominal input voltage (VDC) | 5-24 V |
| Power | 7.5 W |
| Output current | 1500 mA |
| Regulation | Regulated |
| Output voltage range (VDC) | 0.8-34.8 V |
