6.6W DC/DC converter, input 3...17V, output 0.9...6.0V/2000mA, LGA

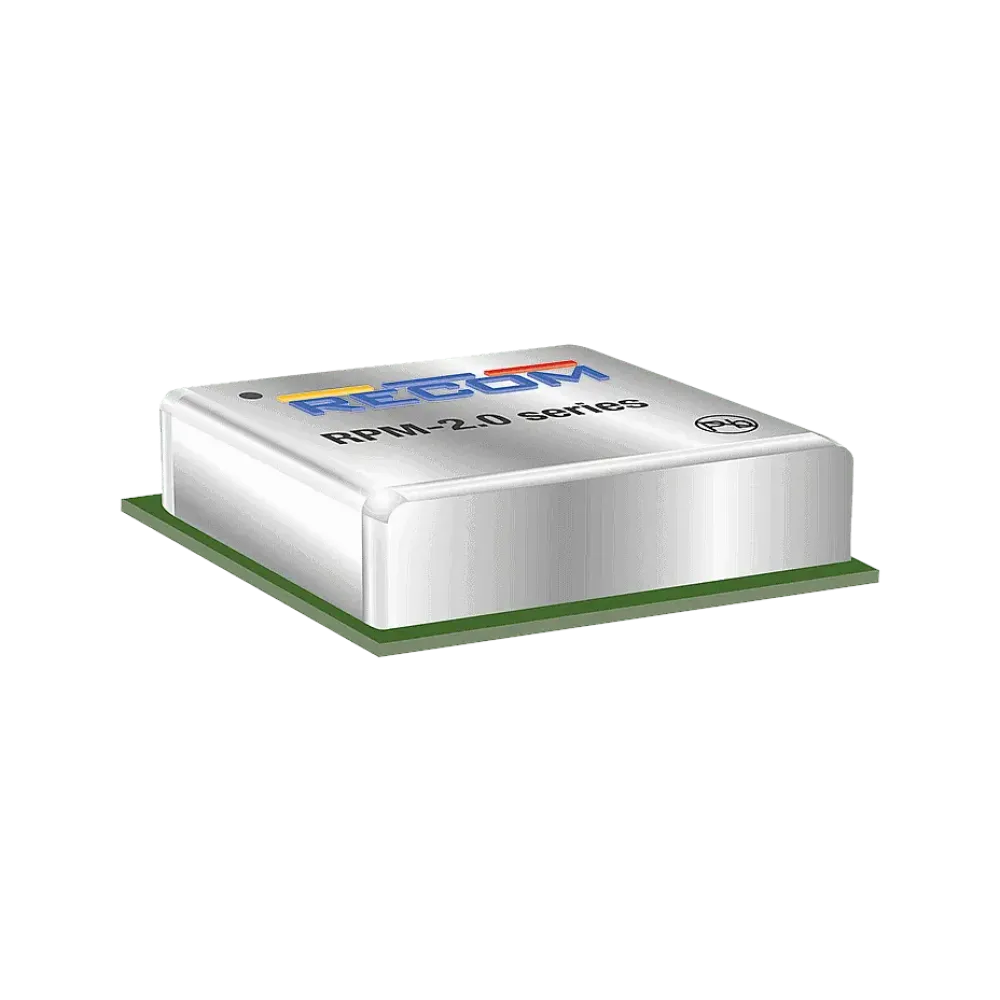

The RPM 2.0 series is a non-isolated 2A switching regulator power module with a full range of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of just 3.75 mm, but with an efficiency of up to 98 %, the device can operate at full load in ambient temperatures of up to +105 °C without forced air cooling. The housing is complete with 6-sided shielding for optimum EMC performance and excellent thermal management.

Technical data

• High power density (LxWxH = 12.19 x 12.19 x 3.75mm)
• Wide operating temperature range -40°C to +105°C at full load
• Efficiency of up to 98%, no heat sinks required
• 6-sided shielding
• Thermally and EMC-optimized LGA housing with 25 pads
• Compact DOSA-compatible footprint
• Low profile
