About the product

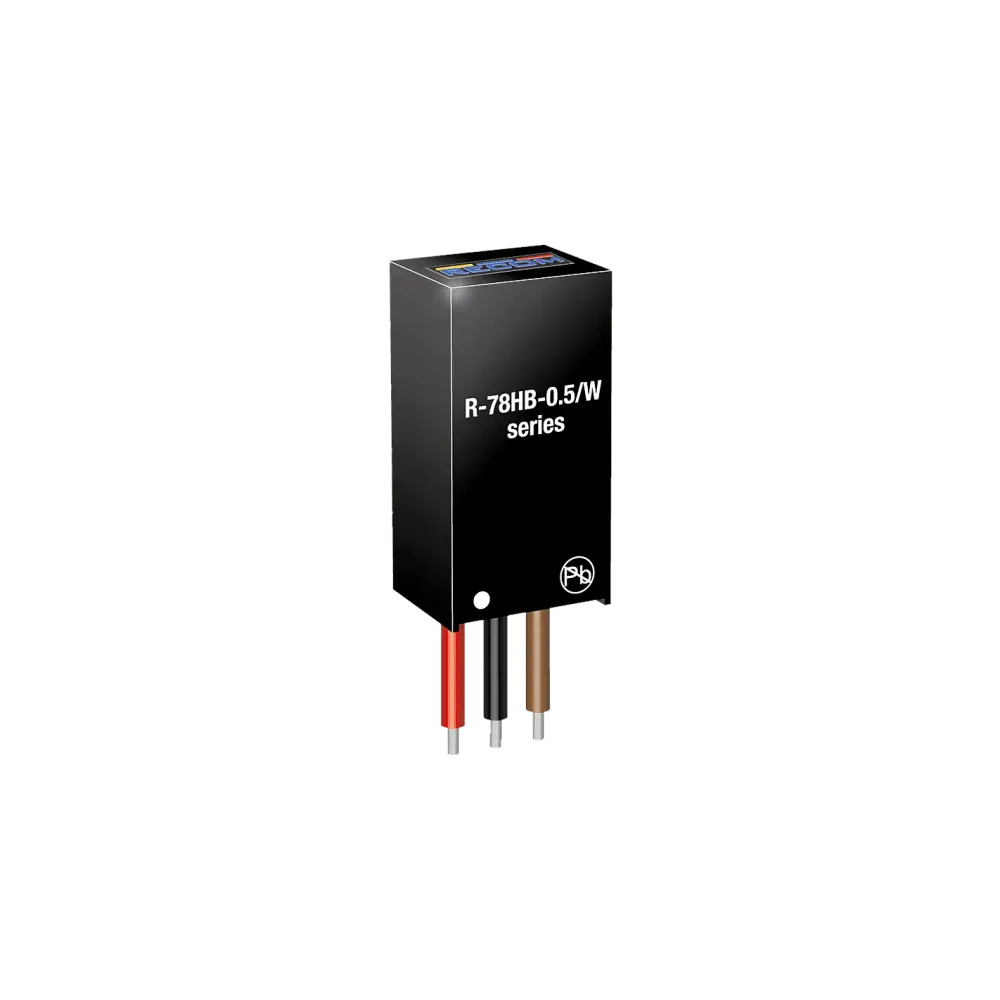

The R-78HBxx/W series switching regulators with high efficiency and a high input voltage range up to 72V are ideal as a replacement for the 78xx series linear regulators. The efficiency of up to 93% means that very little energy is wasted in the form of heat, eliminating the need for heat sinks with their additional space and mounting costs. A wide input voltage range allows full utilization of stored energy from standard 12, 24 and 36V batteries as well as COB LED drivers. No external components are required to create a fully regulated, short-circuit proof supply. A built-in protection diode enables high capacitive loads. Typical applications include auxiliary fan constant voltage power supplies powered by constant current LED drivers as well as industrial, aerospace and battery powered applications.
Technical data
- Efficiency of up to 93 %, no heat sinks required
- High voltage input range, up to 72 V
- Short-circuit protection, thermal shutdown
- All-in-one solution, no external components required
- IEC/EN60950-1 + AM:2 certified
Product specifications
| Output voltage (VDC) | 12 V |
| I/O isolation | not isolated |
| Height | 24 mm |
| Width | 9.7 mm |
| Length | 12.1 mm |
| Nominal input voltage (VDC) | 24-48 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | ITE/AV |
| Power | 6 W |
| Output current | 500 mA |
| Manufacturer | Recom |
| Design | SIP3 |
