About the product

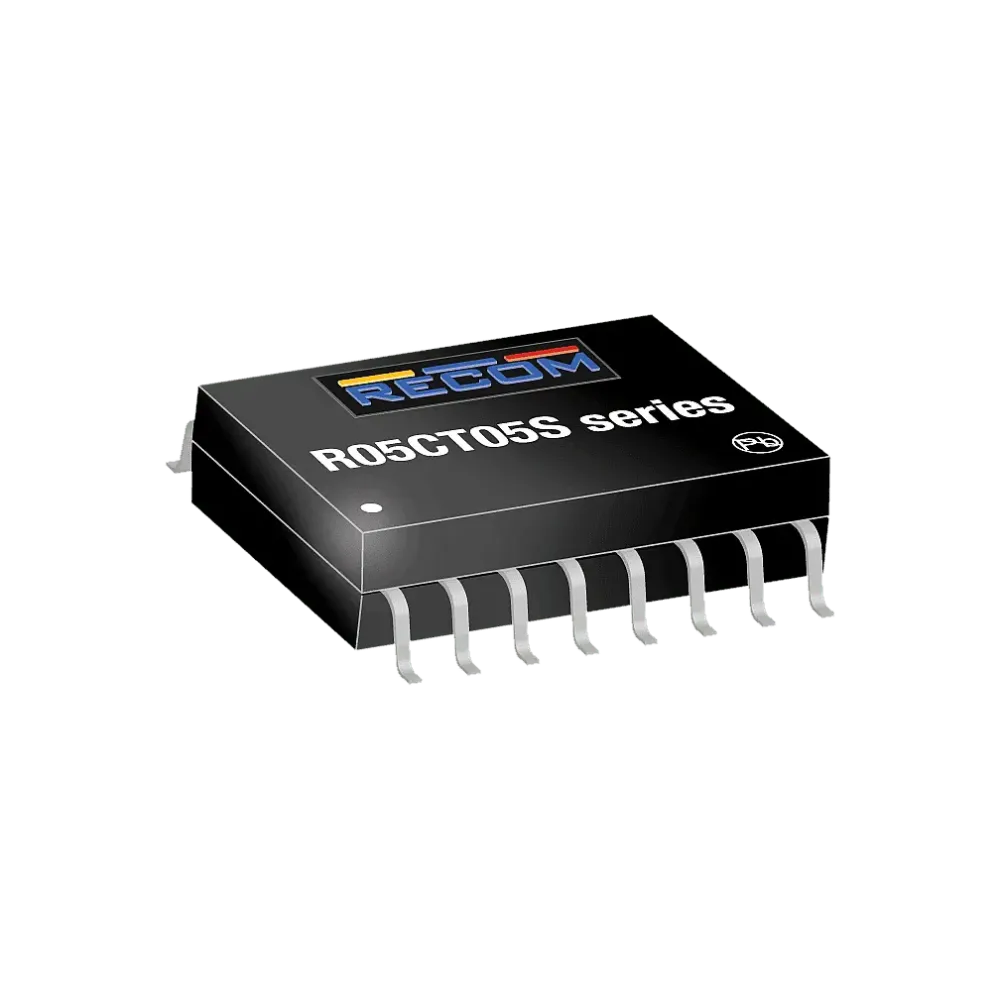

Low cost, low profile 500mW SMD isolated single output DC/DC converter ideal for applications such as communications, current sensing and medical applications requiring robust isolation. The R05CT05S is a single solution with 5V input and a user-defined, regulated 3.3V or 5V output. No minimum load is required. Standard isolation is 5kVAC/1min with a 2MOPP rating for medical applications. Operating temperature ranges from -40°C to +140°C with derating.
Technical data
- Compact 10.3×7.5mm SMD housing
- 5kVAC reinforced insulation
- 5V or 3.3V post-regulated, selectable outputs
- Low EMC emissions
- Ultra-wide temperature range (-40°C to +140°C)
- Low profile (2.6 mm)
Product specifications
| Power | 0.5 W |
| Design | SMD16 |
| I/O isolation | 5000 VAC |
| Length | 10.3 mm |
| Output current | 100000 mA |
| Regulation | Regulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Application | ITE/AV, Medical |
| Output voltage (VDC) | 5 V |
| Manufacturer | Recom |
| Width | 7.5 mm |
| Height | 2.6 mm |
