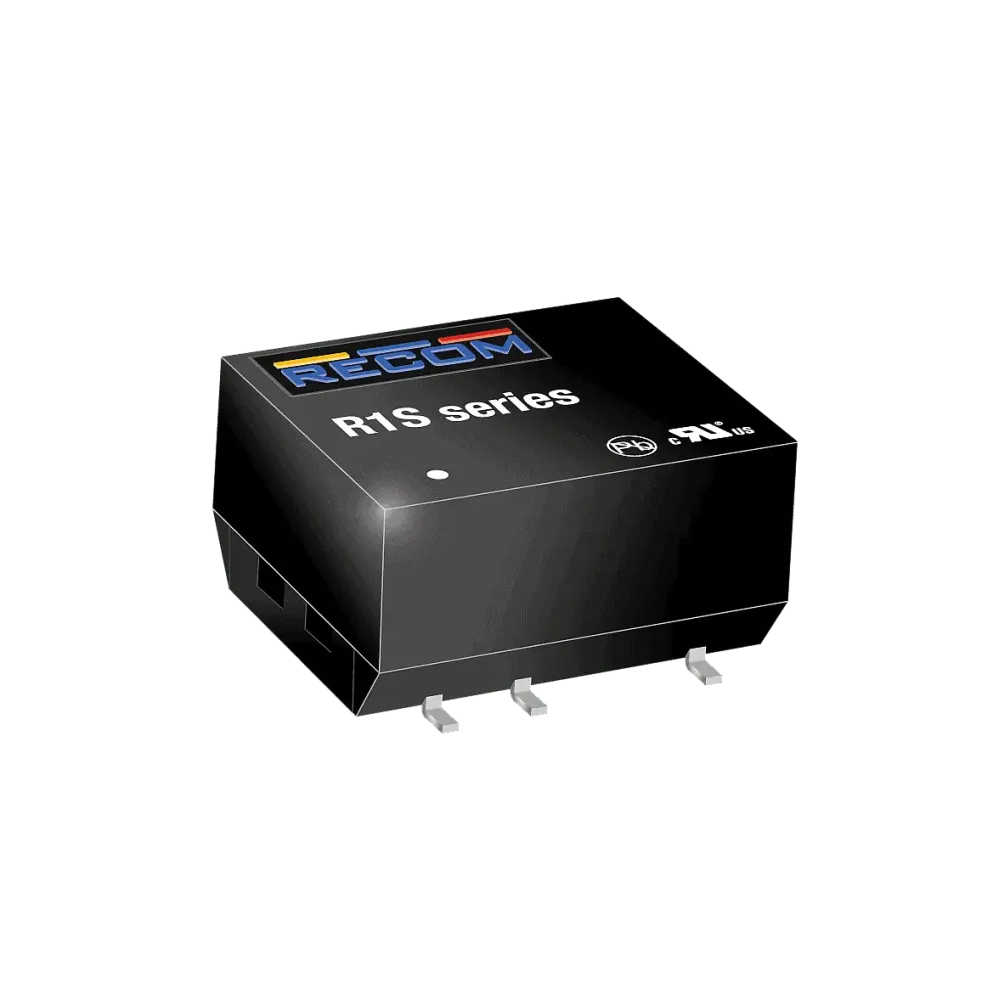

1W DC/DC converter, input 5V +/-10%, output 9V/111mA, SMD

The R1S and R1D converters are of the closed open-frame type, i.e. they are not potted. The converters are typically used in general and low power industrial applications for isolation and voltage matching where an SMD converter is required. The converter series has an extended operating temperature range of -40°C to +100°C without derating and optional continuous short circuit protection. In addition to two insulation options and 3 different housing shapes, the converters are also available pre-packaged as tape and reel for use with automatic pick and place machines.

Technical data

• Full power at 100°C ambient temperature
• 1kVDC/1s or 3kVDC/1s insulation option
• UL and EN certified, CB report
• Suitable for fully automatic assembly (including vapor phase soldering)
• Optional permanent short-circuit protection
• Efficiency of up to 84
