About the product

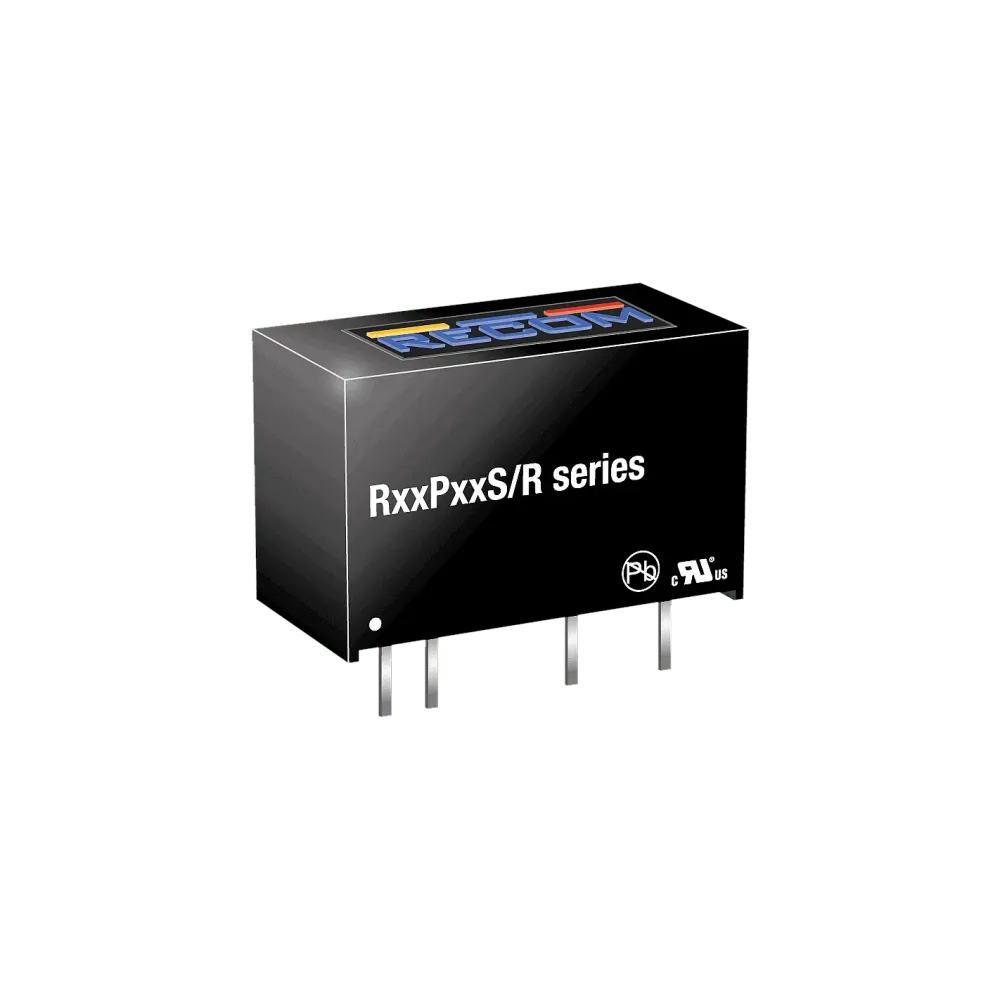

The DC/DC converters in the RxxPxxS_D series are certified in accordance with both UL/CSA60950-1 and EN60950-1. This makes them ideal for safety applications where approved insulation is required.
Technical data
- UL/CSA and IEC/EN certified
- High insulation 6.4kVDC
- Optional permanent short-circuit protection
- /X2 version with >9mm distance between input and output
- Suitable for IGBT applications.
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Width | 9.8 mm |
| Height | 12.5 mm |
| Output current | 200000 mA |
| Length | 19.5 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV, Medical |
| Output voltage (VDC) | 5 V |
| I/O isolation | 8000 VDC |
