About the product

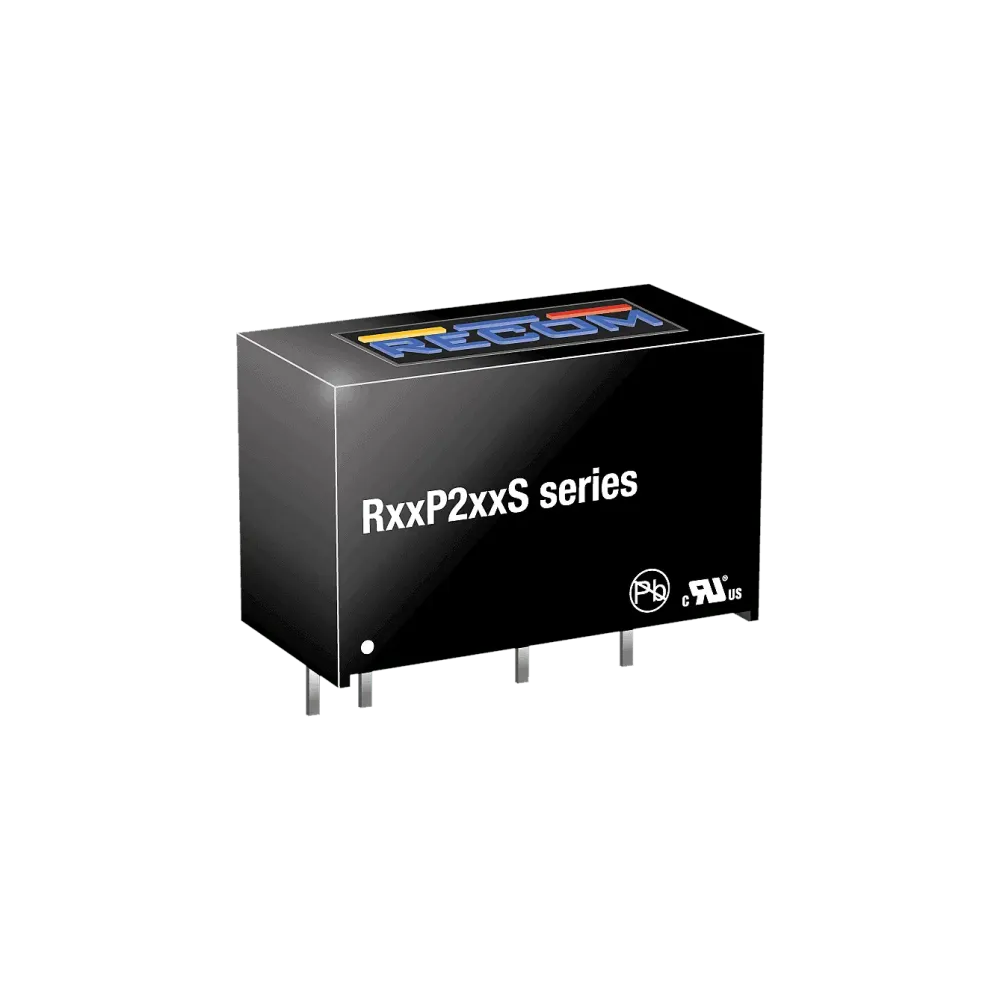

The DC/DC converters in the RxxP2xxS_D series are certified in accordance with UL/CSA60950-1 and UL/CSA62368-1 as well as IEC/EN62368-1. This makes them ideal for safety applications where approved insulation is required. The /X2 version has a distance between input and output of more than 9 mm.
Technical data
- Qualified with 65kV/µs @ common mode =1KV
- Insulation 6.4kVDC
- Optional permanent short-circuit protection
- Unique transformer system
- Compact SIP7 housing
- /X2 version with >9mm input/output distance
- Very low insulation capacities
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Width | 9.8 mm |
| Output current | 133 mA |
| Height | 12.5 mm |
| Length | 19.5 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 2 W |
| Application | ITE/AV, Medical |
| Output voltage (VDC) | 15 V |
| I/O isolation | 6400 VDC |
