About the product

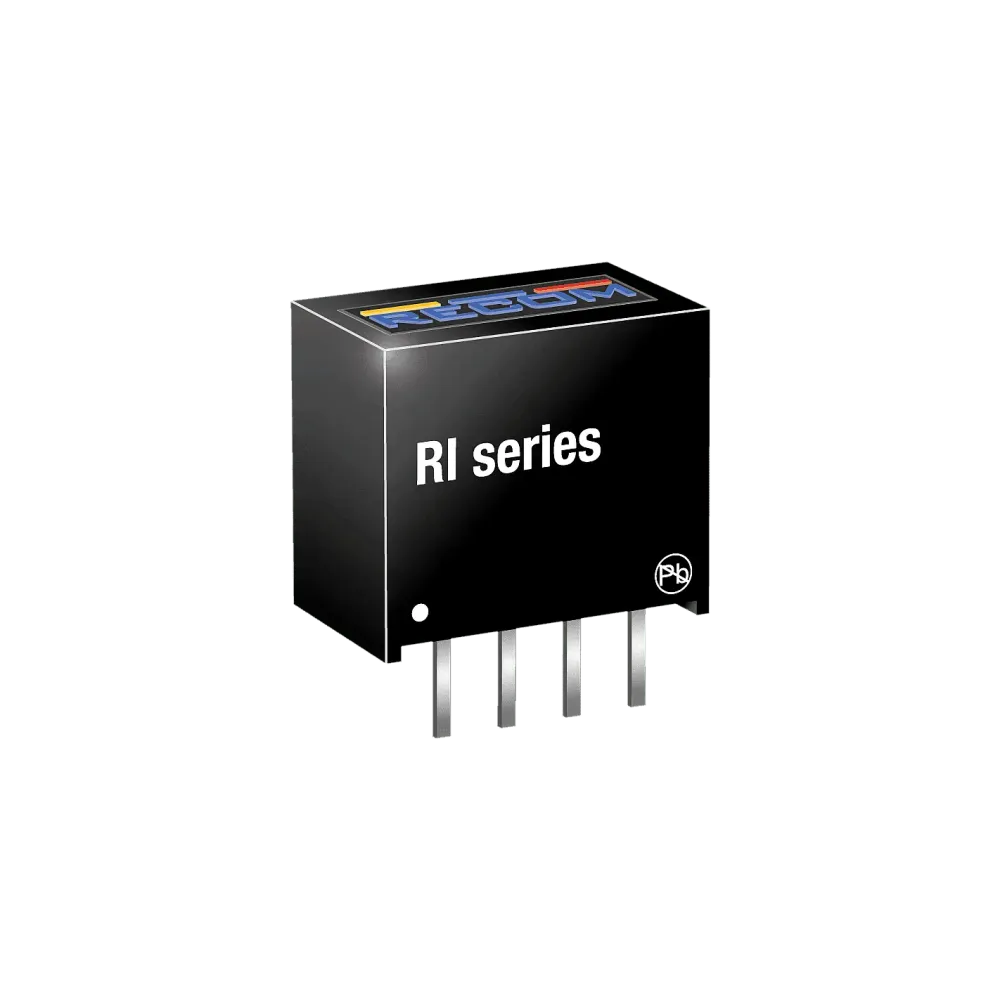

RI-0505S is a 2 Watt DC/DC converter for applications with limited space on the PCB. With efficiencies of up to 85%, full output power is available over the operating temperature range of -40°C to +85°C, and the converters can be used with derating at ambient temperatures of up to 100°C. The wide range of input voltage and output voltage options and a standard I/O isolation of 1kVDC make these converters suitable for many industrial applications.
Technical data
- 1kVDC/1 second Basic insulation
- Optional permanent short-circuit protection
- UL94 V-0 Housing material
- No heat sink required
- Efficiency of up to 85
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Width | 7.6 mm |
| Length | 11.5 mm |
| Height | 10.2 mm |
| Output current | 400000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 2 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | SIP4 |
