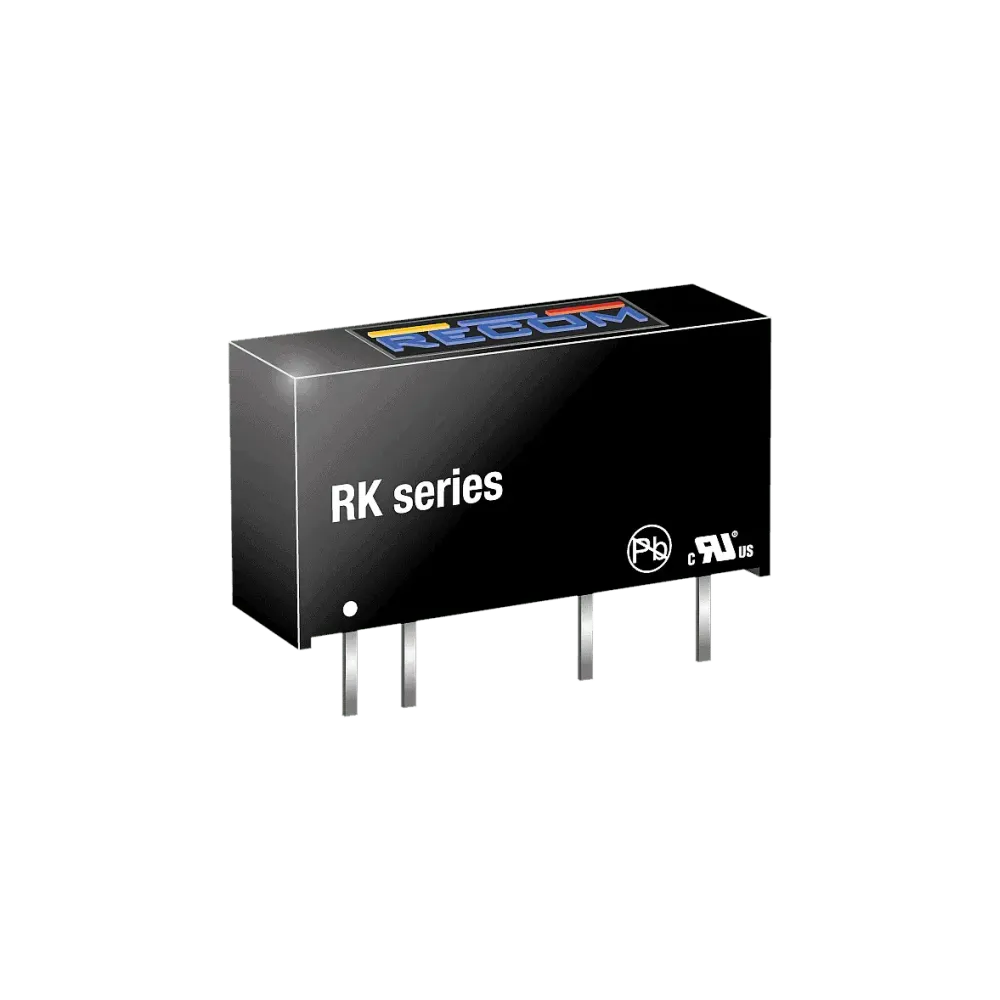

1W DC/DC converter, input 5V, output 5V/200mA, SIP7

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The DC/DC converters of the RK-H series complement RECOM's industrial converter series with very high insulation values of 4kVDC/1s. The extended operating temperature range of -40°C to +90°C is a standard feature. The converters are certified to IEC/EN/UL60950-1 and are suitable for IGBT driver applications.

Technical data

4kVDC/1s insulation
Optional permanent short-circuit protection
UL94V-0 housing material
Efficiency of up to 84
Suitable for IGBT applications

Product specifications

Manufacturer	Recom
Design	SIP7
Width	7.05 mm
Length	19.6 mm
Height	10.2 mm
Output current	200000 mA
Regulation	Unregulated
Input voltage ratio	+/-10 %
Nominal input voltage (VDC)	5 V
Power	1 W
Application	ITE/AV
Output voltage (VDC)	5 V
I/O isolation	4000 VDC
