About the product

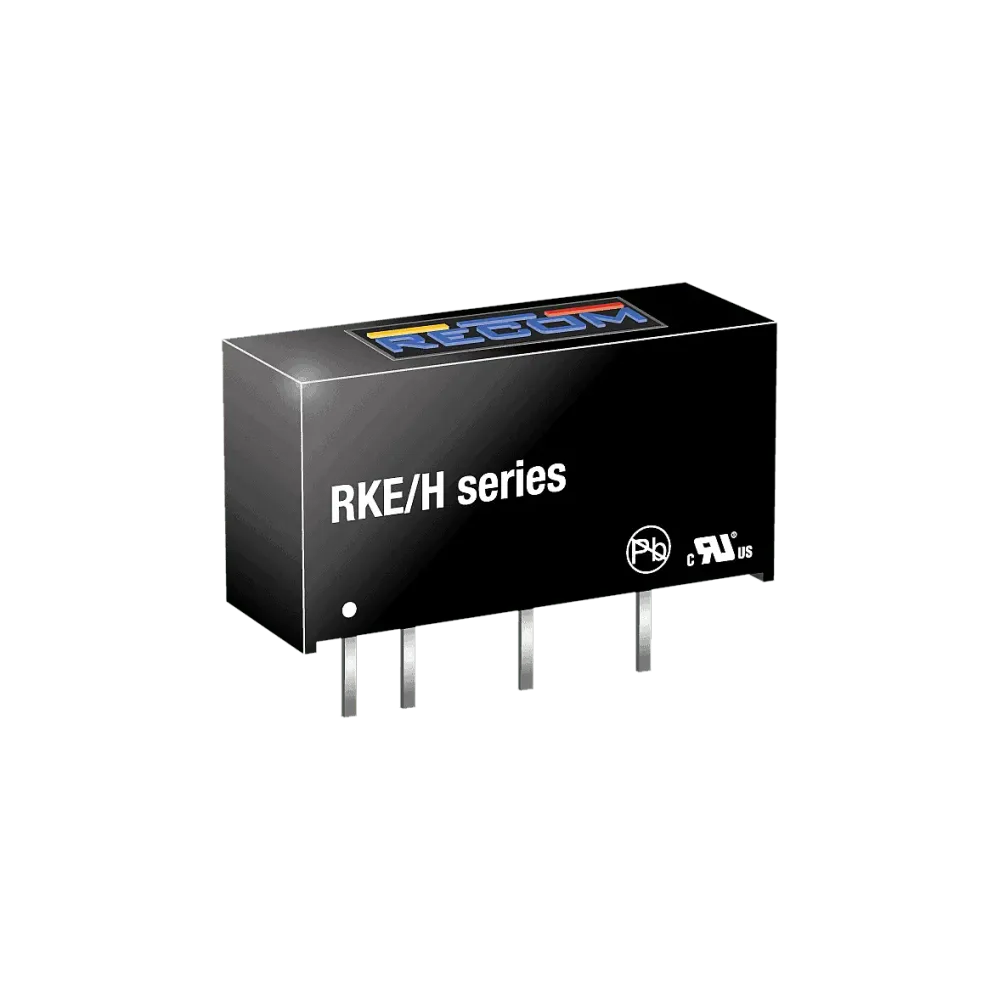

The RKE/H DC/DC converters are typically used in cost-sensitive general purpose applications for power isolation and voltage matching. Despite their low cost, they are fully specified converters with 4kVdc isolation, an industrial operating temperature range of -40°C to +85°C without derating and UL/EN certifications.
Technical data
- Cost-effective
- 1:1 Input voltage range
- Efficiency of up to 81
- 4kVDC/1 second insulation
- IEC/EN/UL-certified
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Width | 7.05 mm |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 12 V |
| Output current | 200000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| I/O isolation | 4000 VDC |
