About the product

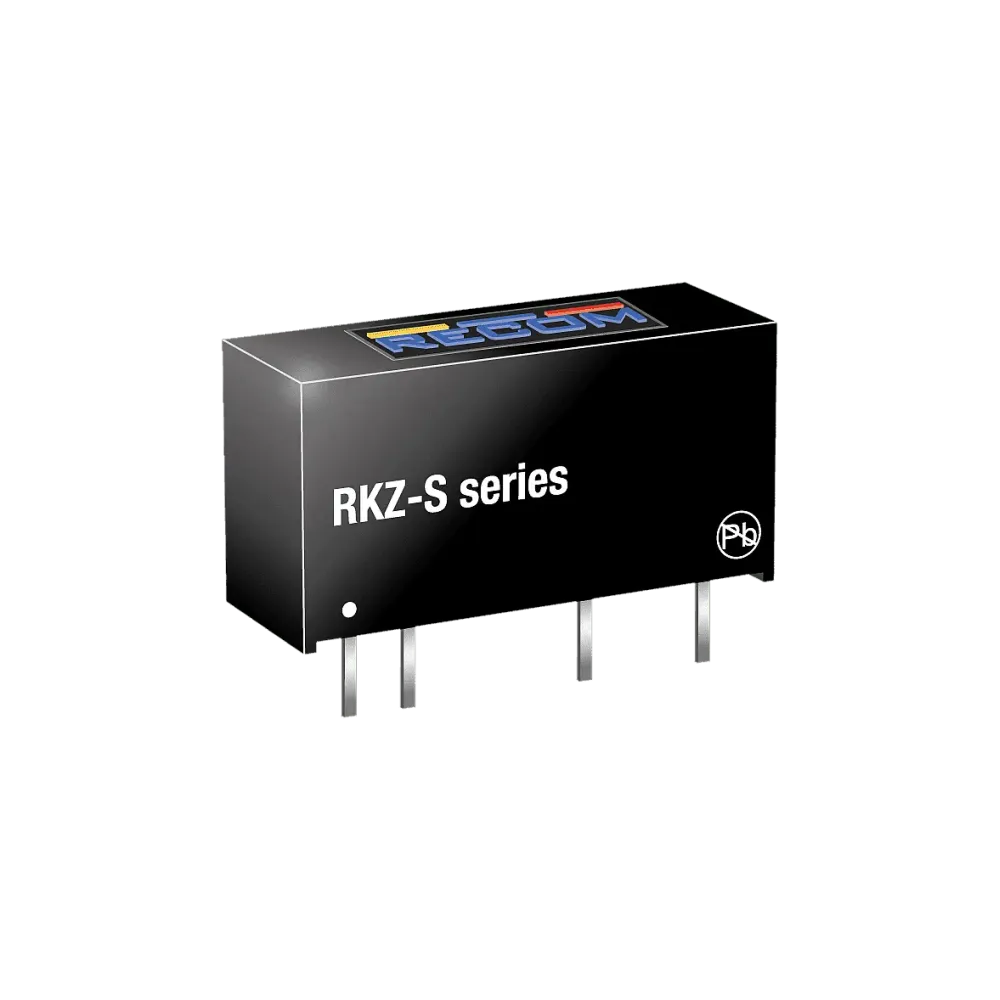

RKZ-0505S is a 2 Watt DC/DC converter for high-end industrial applications such as IGBT driver circuits. The RKZ converters are pin-compatible with the RK and RH converter series and offer an easy way to upgrade a highly isolated 1 watt supply to 2 watts.
Technical data
- Highly insulating 2W converter
- 3kVDC/1s basic insulation
- UL94V-0 housing material
- Optionally with permanent short-circuit protection
- Efficiency of up to 84
- Suitable for IGBT applications
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Width | 7.05 mm |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Output current | 400000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 2 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| I/O isolation | 3000 VDC |
