About the product

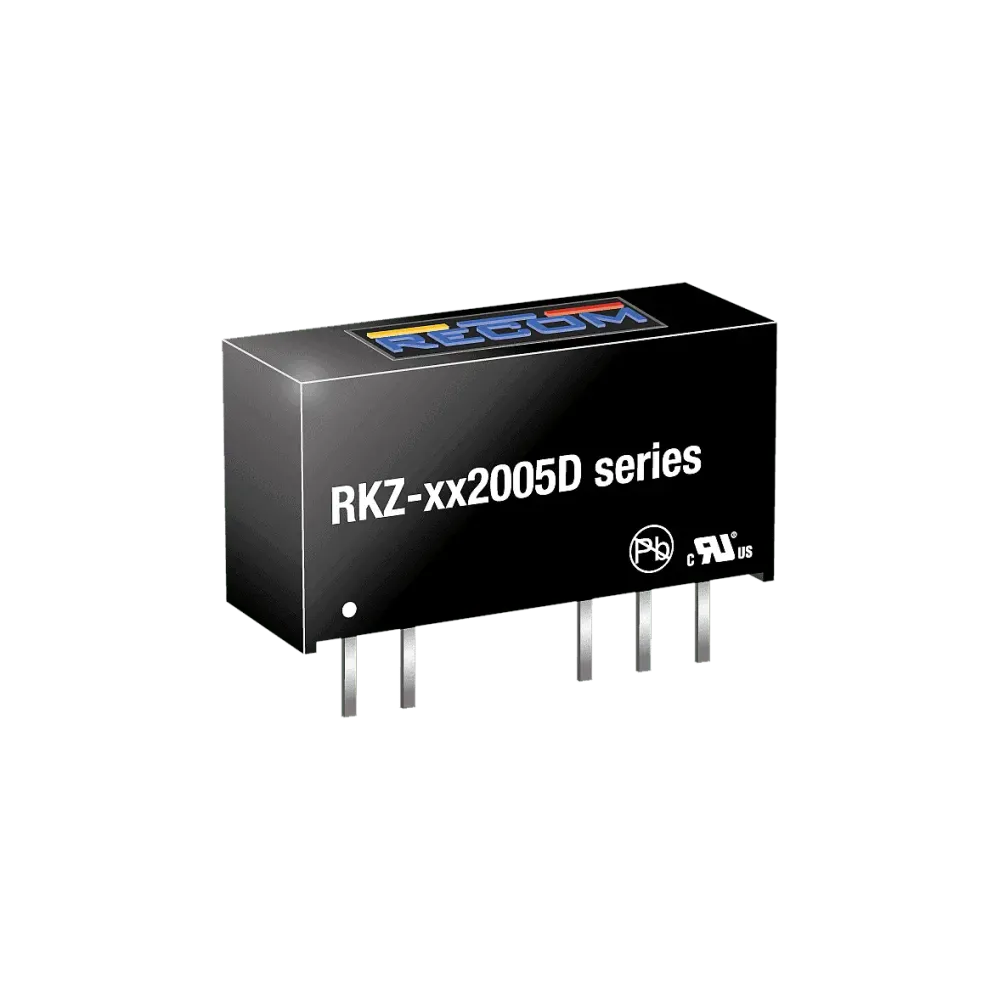

RKZ-242005D is a DC/DC converter specially designed for SiC mosfet drivers. The module has an input voltage of 24VDC with two asymmetrical outputs of +20VDC and -5VDC. A special feature of this converter is the division of the output power: the RKZ-242005D can be used with loads of equal power (asymmetrical current) or equal current (asymmetrical power).
The module offers an insulation of 3kVDC. The operating temperature range of -40°C to +100°C (with derating) also meets higher temperature requirements.
Technical data
- Power Sharing
- High isolation 3kVDC for 1 second
- Efficiency of up to 87
- Wide operating temperature range from -40°C to +85°C without derating
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Output current | +50/-200 mA |
| Output voltage (VDC) | 5-20 V |
| Width | 7.05 mm |
| Length | 19.6 mm |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Power | 2 W |
| Application | ITE/AV |
| I/O isolation | 3000 VDC |
