About the product

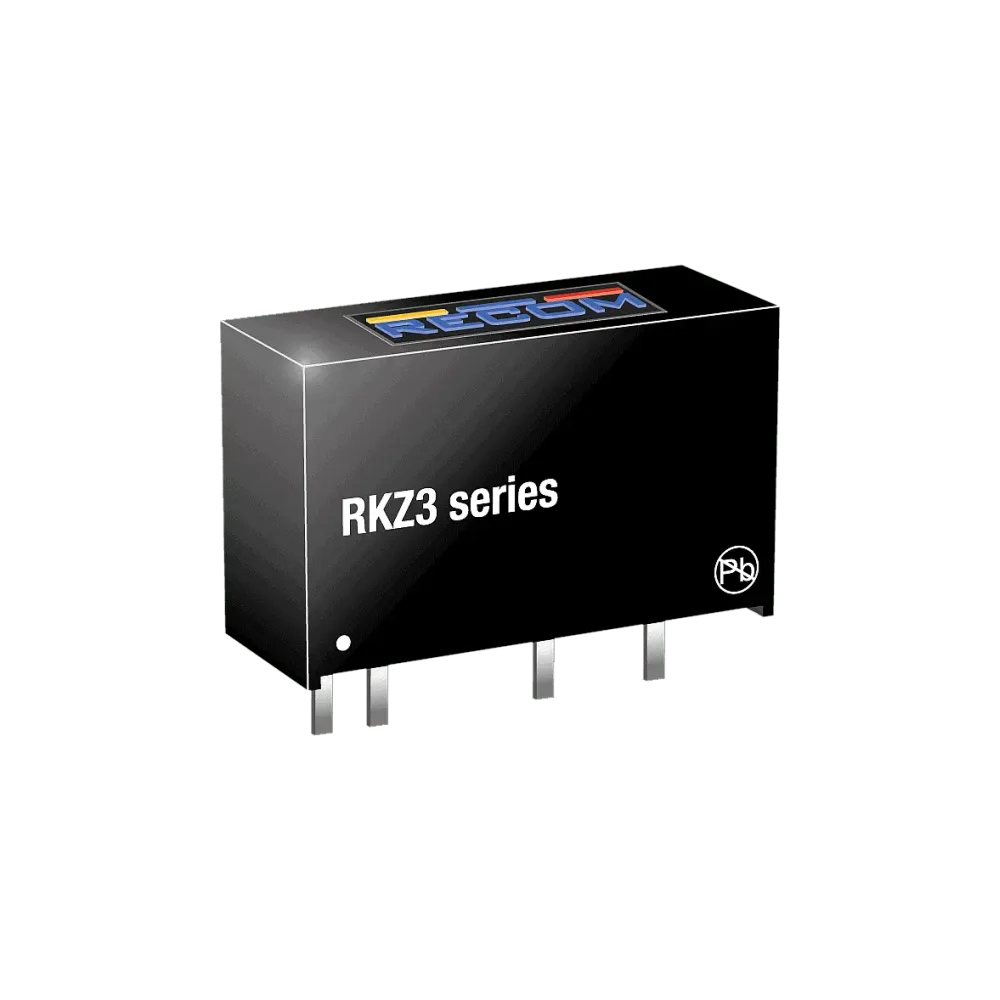

RKZ3-0505S is a 3 Watt DC/DC converter with high isolation and is suitable for demanding industrial applications such as bus isolators, interruption of ground loops or isolation of multi-channel inputs that require more power than is currently available in isolated SIP7 standard DC/DC converters.
The RKZ3 converters are pin-compatible with the RK and RKZ converter series and offer an easy way to upgrade an existing high-isolation design from 1W or 2W to 3W. The converters are certified to IEC/EN62368.
Technical data
- 3 watt converter with high power density in SIP7 housing
- 3kVDC insulation
- Efficiency up to 90
- Certified according to EN62368
Product specifications
| Width | 7.5 mm |
| Design | SIP7 |
| Height | 12.2 mm |
| Length | 19.6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 3 W |
| Output current | 600 mA |
| Manufacturer | Recom |
| I/O isolation | 3000 VDC |
