0.25W DC/DC converter, input 12V, output 5V/50mA, SIP4

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

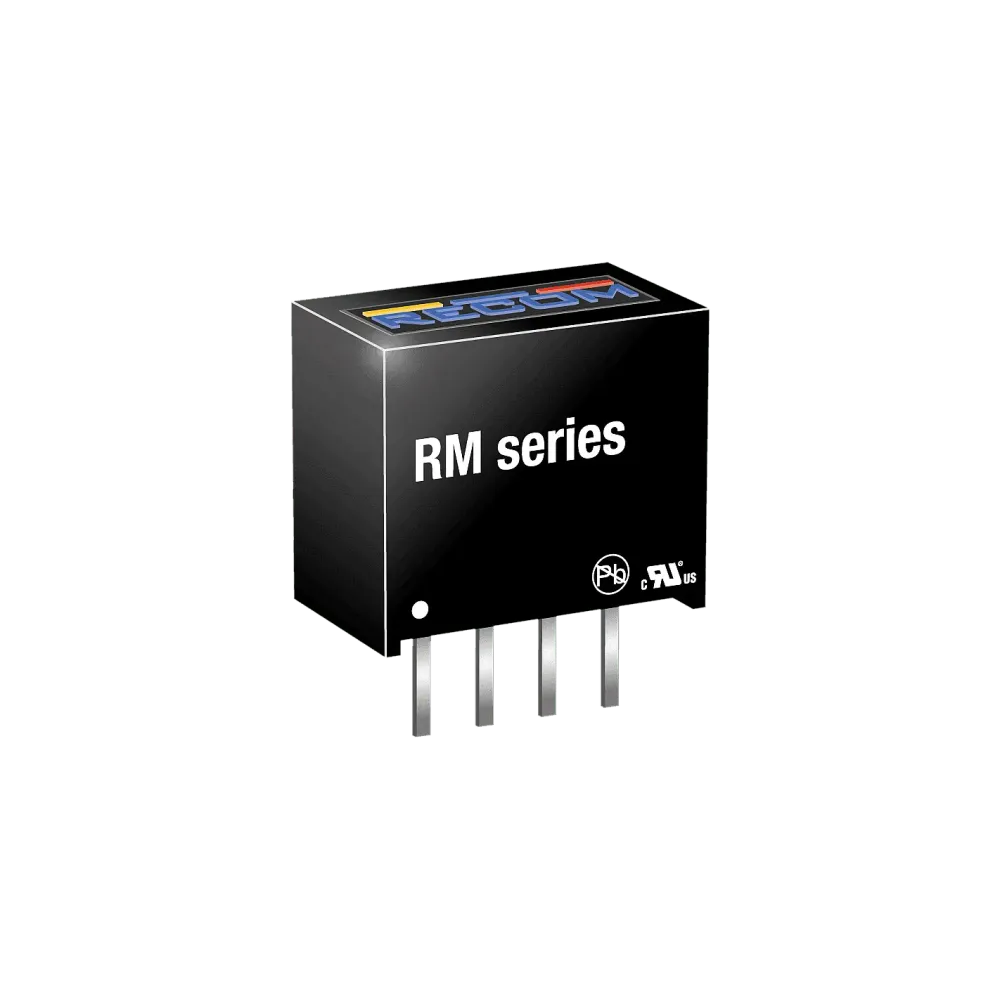

The RM series DC/DC converters have been developed for the isolation or conversion of DC power rails with very low loads. The efficiency is typically 10 % higher than comparable 0.5 W or 1 W converters operating at the same low load.

Technical data

Pin assignment according to industry standard
1kVDC/1s basic insulation
High efficiency for low power applications
UL94V-0 housing material
Fully encapsulated
Efficiency of up to 76

Product specifications

Manufacturer	Recom
I/O isolation	1000 VDC
Power	0.25 W
Length	11.5 mm
Output current	50000 mA
Nominal input voltage (VDC)	12 V
Height	10 mm
Width	6 mm
Regulation	Unregulated
Input voltage ratio	+/-10 %
Application	ITE/AV
Output voltage (VDC)	5 V
Design	SIP4
