About the product

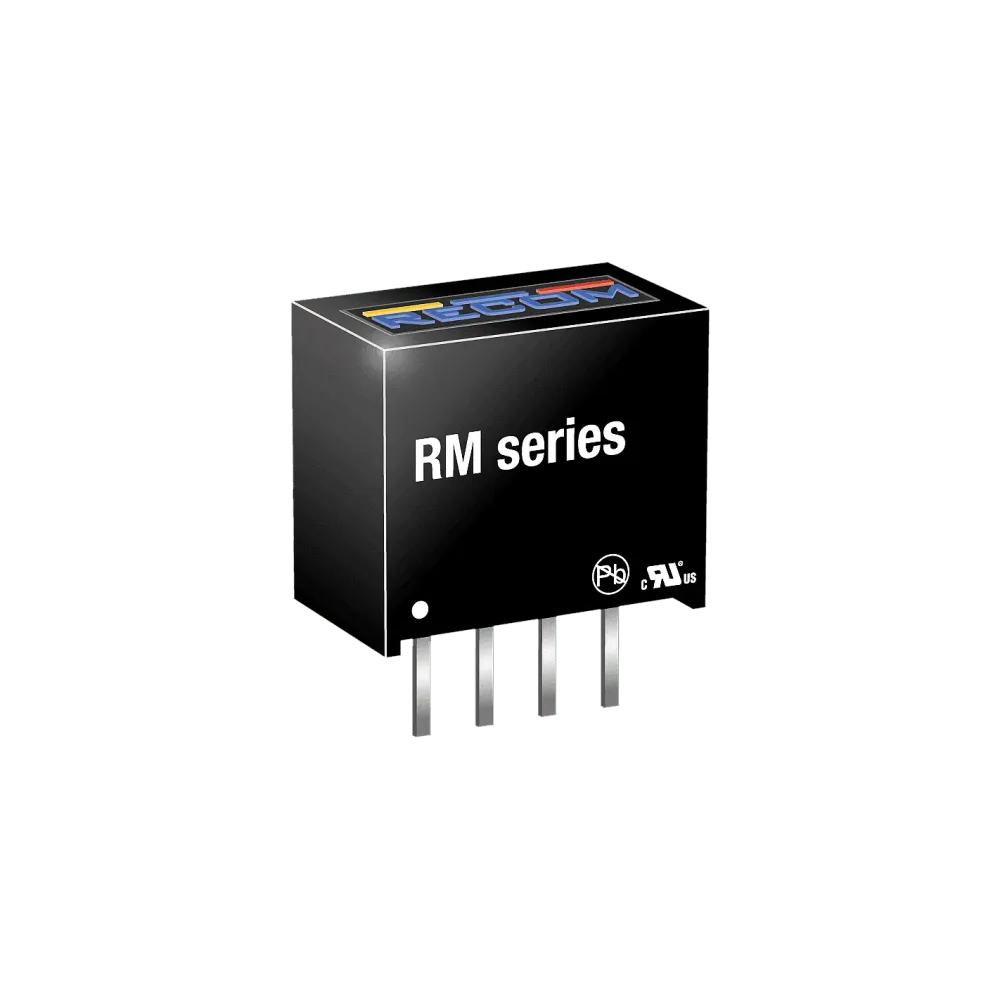

The RM series DC/DC converters have been developed for the isolation or conversion of DC power rails with very low loads. The efficiency is typically 10 % higher than comparable 0.5 W or 1 W converters operating at the same low load.
Technical data
- Pin assignment according to industry standard
- 1kVDC/1s basic insulation
- High efficiency for low power applications
- UL94V-0 housing material
- Fully encapsulated
- Efficiency of up to 76
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Power | 0.25 W |
| Length | 11.5 mm |
| Output current | 50000 mA |
| Nominal input voltage (VDC) | 24 V |
| Height | 10 mm |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | SIP4 |
