About the product

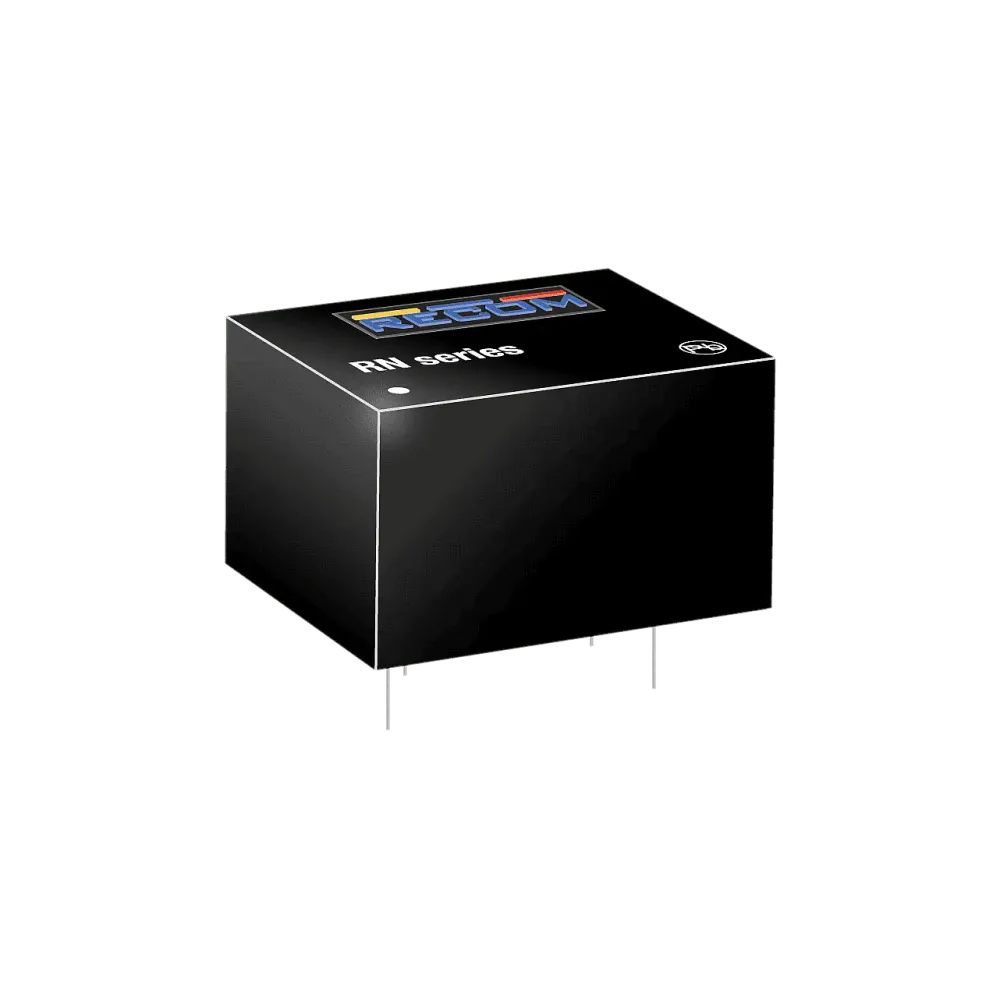

RN-0505S is a 1.25 Watt DC-DC converter and is particularly useful when more than 1 Watt of power is required but a 2 Watt converter is out of the question for space reasons. It offers an industrial ambient temperature range of -40°C to +85°C without derating and up to 100°C ambient temperature with derating.
Technical data
- 1kVDC/1s basic insulation
- UL94V-0 housing material
- No heat sink required
- Efficiency up to 85
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Height | 7.6 mm |
| Width | 10.1 mm |
| Length | 12.6 mm |
| Power | 1.25 W |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Output current | 250 mA |
| Design | DIP8 |
