About the product

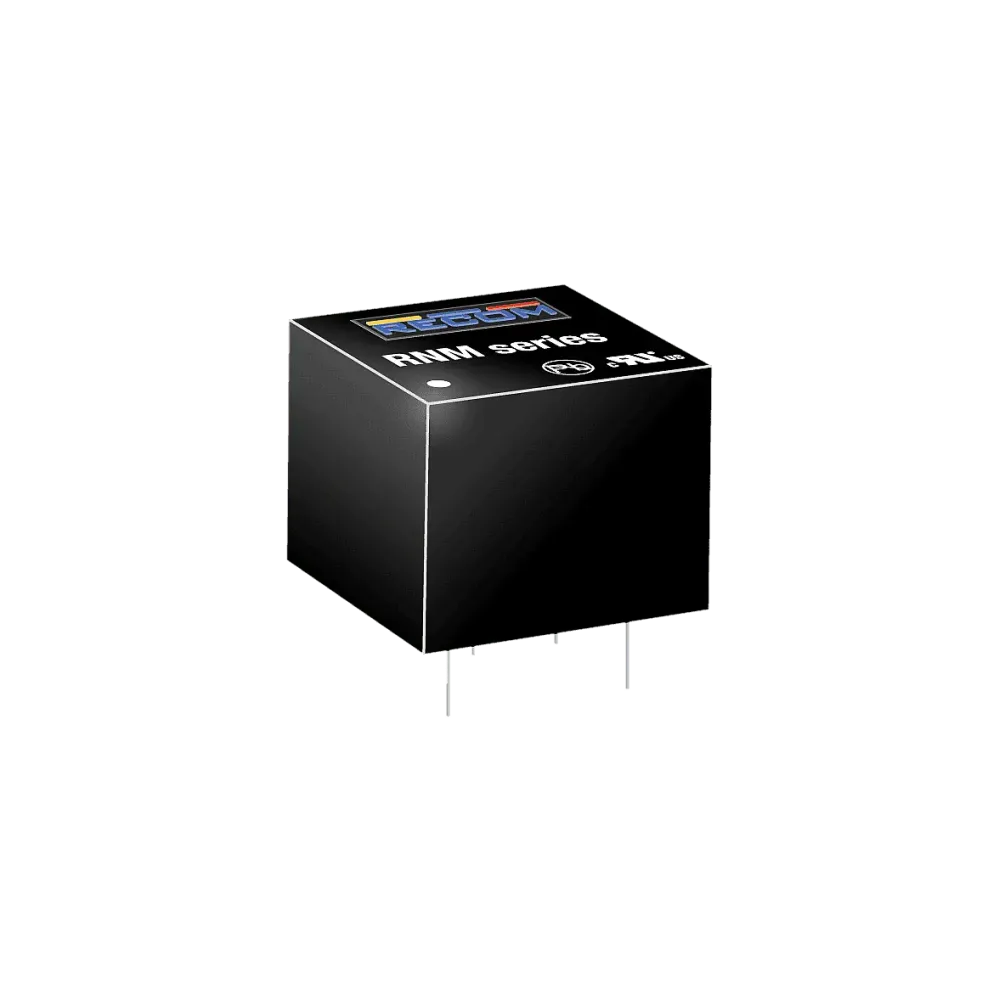

RNM-0505S is an ultra-compact isolated DC-DC converter with single output for applications with limited space on the PCB. Despite their small size, the converters are fully featured with an industrial operating temperature range of -40°C to +85°C without derating (+100°C with derating) and 1kVDC isolation.
Technical data
- Ultra-compact size - only 8.3 x 8.3 x 6.8 mm
- 1kVDC/1s basic insulation
- Fully encapsulated
- UL and EN certified, CB report
- Efficiency up to 84%
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Height | 6.8 mm |
| Width | 8.3 mm |
| Length | 8.3 mm |
| Output current | 200000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | DIP6 |
