About the product

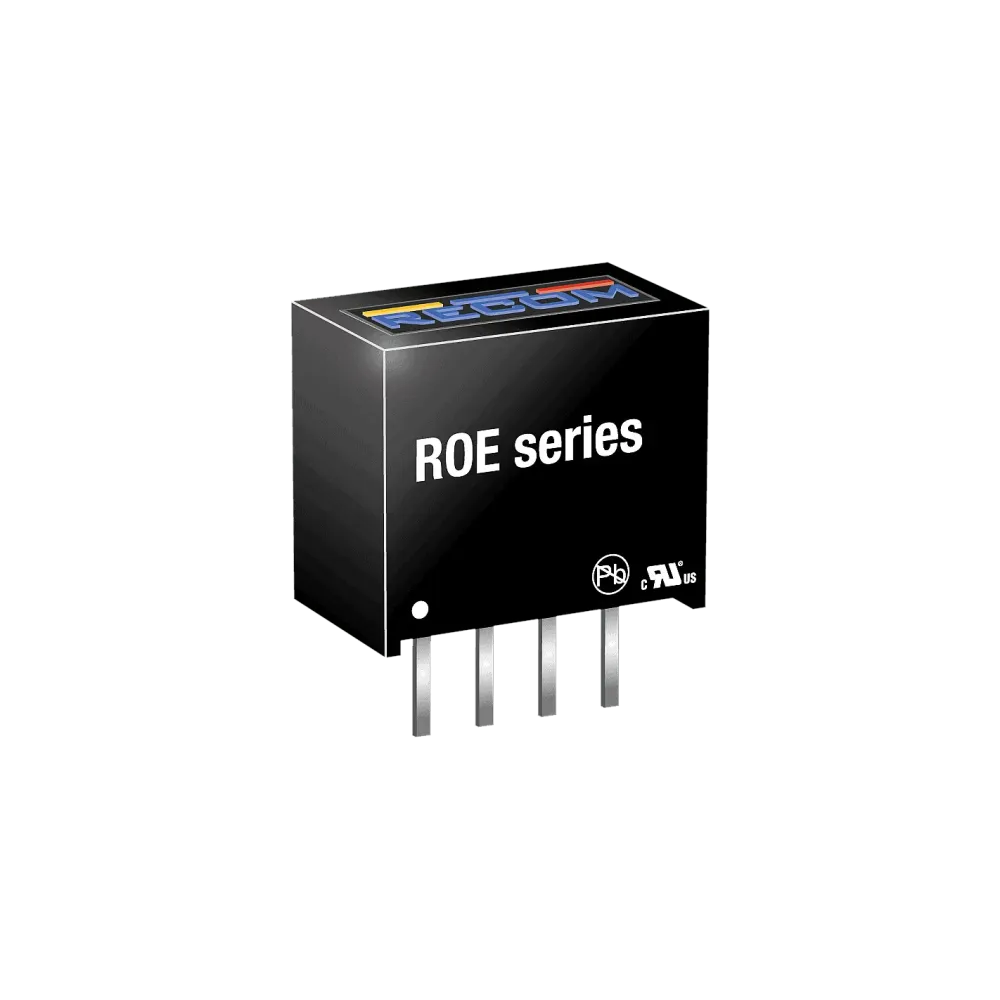

The ROE DC/DC converters are typically used for general power isolation and voltage matching applications and have a full industrial operating temperature range of -40°C to +85°C without derating.
Technical data
- Cost-effective 1 W converter
- Pinout according to industry standard
- SIP4 housing
- 1kVDC insulation
- Efficiency of up to 80%
- Wide operating temperature range from -40°C to +85°C
- UL60950-1 and CAN/CSA C22.2 No. 60950-1-07 certified
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Length | 11.5 mm |
| Output current | 200000 mA |
| Nominal input voltage (VDC) | 3.3 V |
| Height | 10 mm |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Design | SIP4 |
Data sheets
