About the product

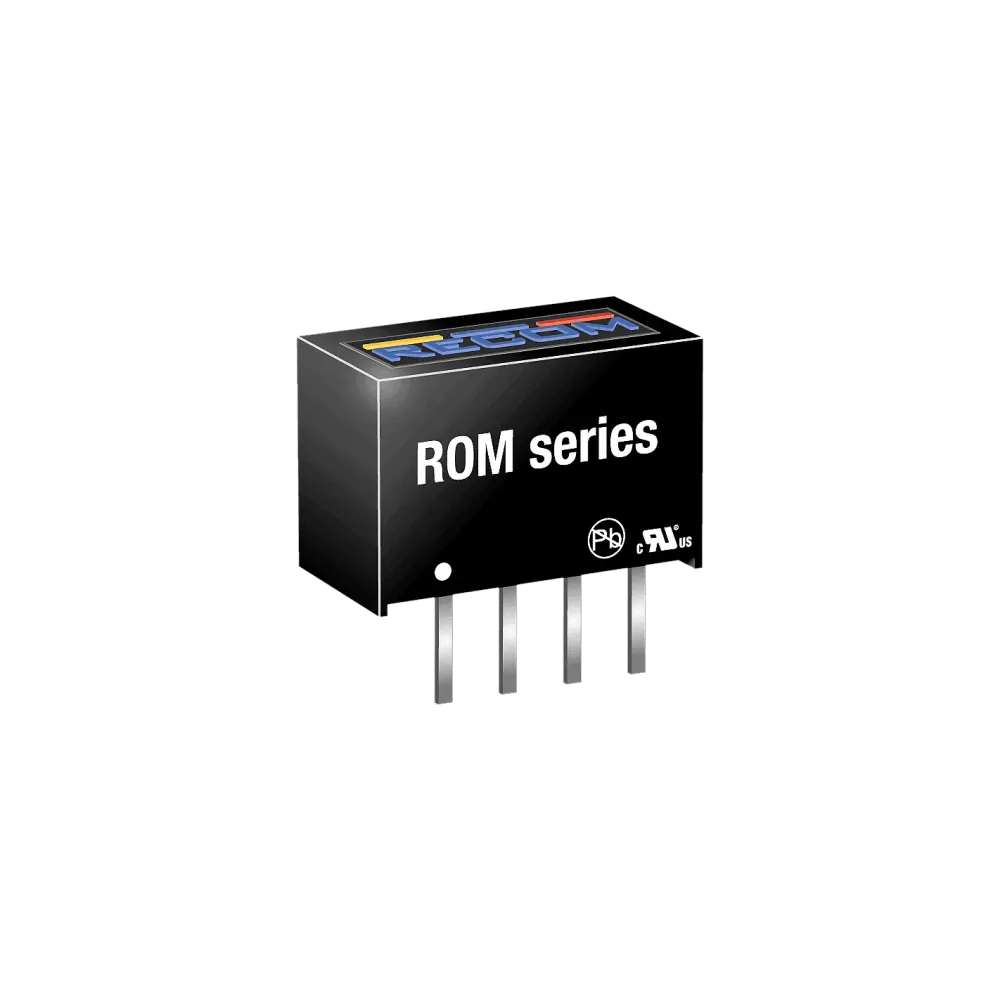

The ROM Micro Size DC/DC converter was developed for the isolation or conversion of DC voltages where height is an important factor. Although it has a 7.7 mm micro housing, it does not compromise on features and offers high 3 kVDC isolation and an operating temperature range of -40°C to +85°C.
Technical data
- SIP4 housing in micro format
- 3kVDC/1s basic insulation
- Pin assignment according to industry standard
- UL94V-0 housing material
- Efficiency of up to 85
Product specifications
| Manufacturer | Recom |
| Design | SIP4 |
| Height | 7.7 mm |
| Length | 11.5 mm |
| Output current | 200000 mA |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| I/O isolation | 3000 VDC |
