About the product

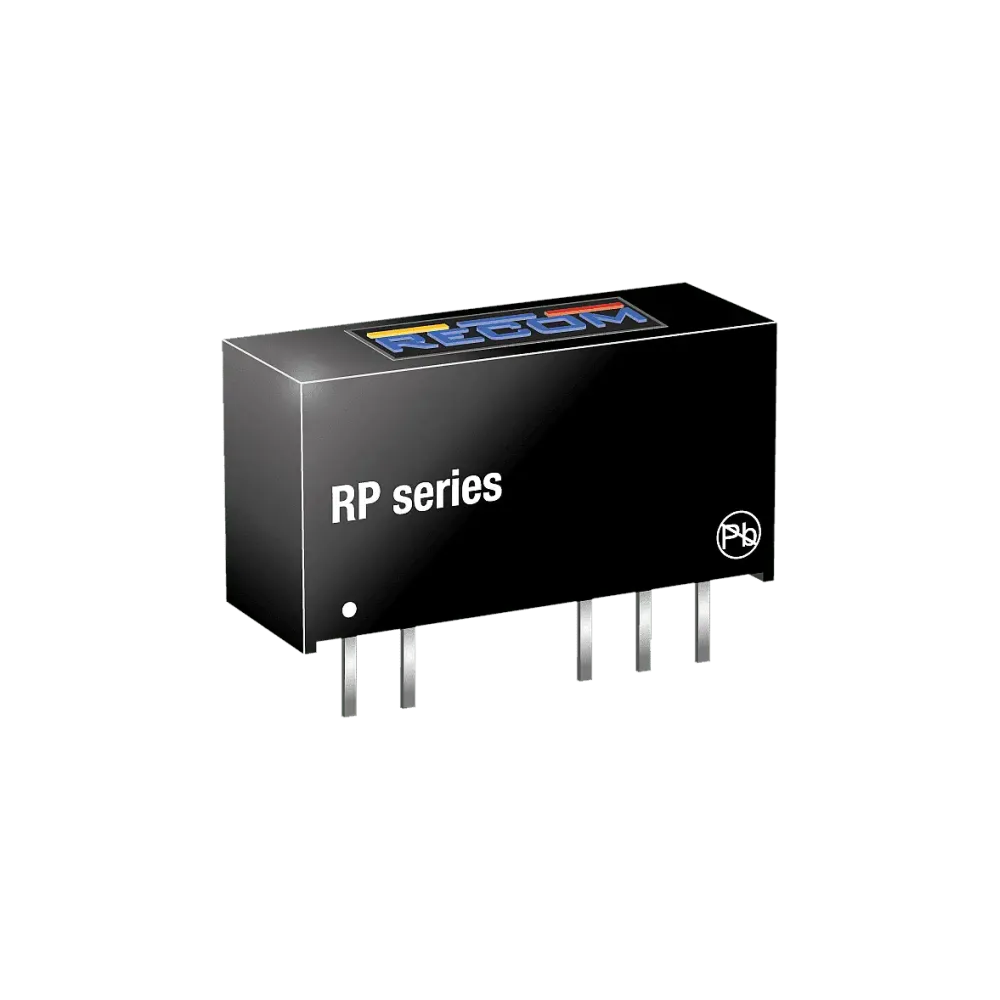

RP-1505S offers a very high isolation of 5.2 kVDC in a compact size. The converters are suitable for IGBT driver applications.
Technical data
- Pot-core transformer - separate windings
- High basic insulation of 5.2 kVDC/1s with compact size
- Efficiency up to 82 %
- Pin-compatible with the RH and RK series
- Suitable for IGBT applications
- IEC/EN/UL/CSA 60950-1 certified
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Length | 19.65 mm |
| Width | 7.05 mm |
| Nominal input voltage (VDC) | 15 V |
| Height | 10.2 mm |
| Output current | 200000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| I/O isolation | 5200 VDC |
