About the product

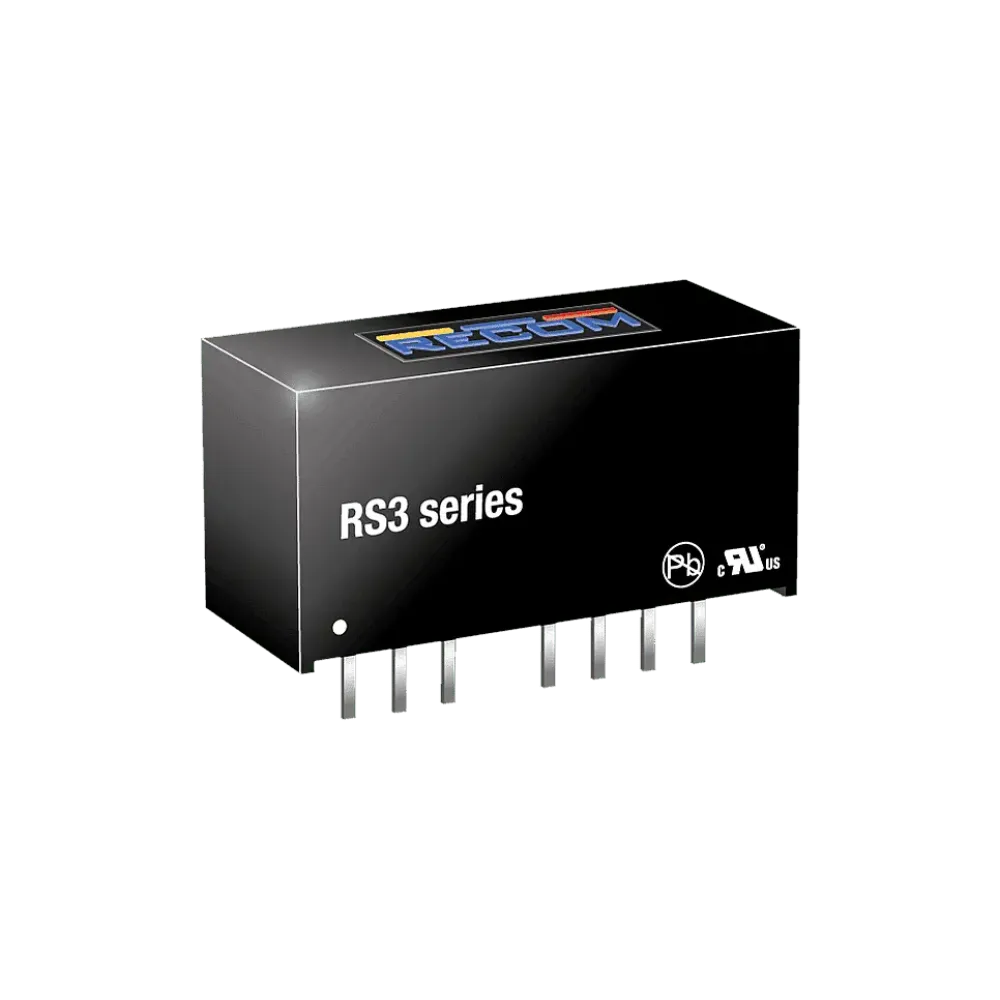

A very high power density, an input voltage range of 2:1 and a wide operating temperature range of -40°C to +71°C as well as additional features such as a remote ON/OFF are just some of the features of this converter, which is ideal for advanced industrial designs. The RS3 is available with 2kV or 3kV isolation options (1kVDC is standard).
Technical data
- 2:1 Input voltage range
- 1kVDC insulation
- UL94V-0 housing material
- Continuous short-circuit protection
- Low ripple and noise
- CTRL on/off
- Efficiency of up to 83
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1000 VDC |
| Output current | +125/-125 mA |
| Length | 21.8 mm |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Output voltage (VDC) | 12 V |
| Application | ITE/AV, Medical |
| Power | 3 W |
| Design | SIP8 |
