About the product

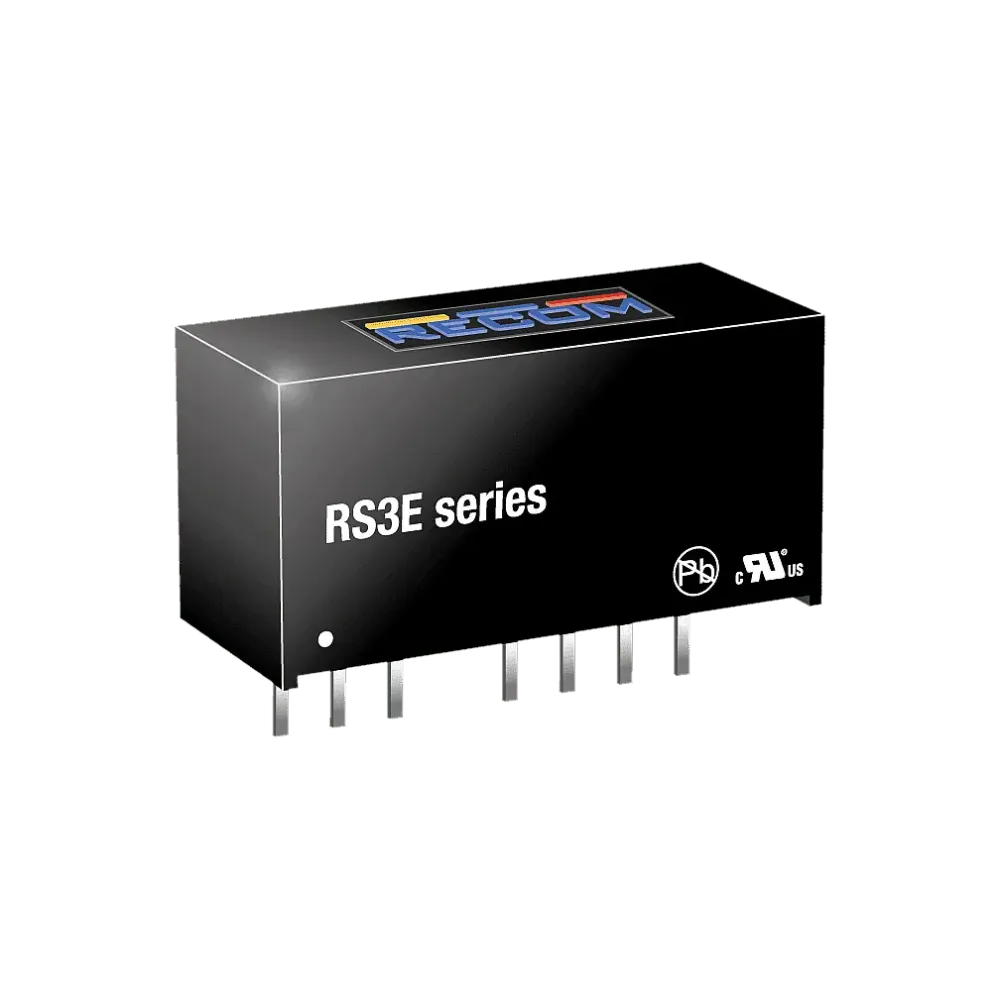

RS3E-2405S/H3 offers a very high power density, a wide input voltage range, high 3kVDC isolation and an industrial operating temperature range of -40°C to +70°C without derating.
High efficiency, precise regulation and remote ON/OFF control are just some of the features of this advanced, cost-effective SIP8 3 Watt converter, which is ideal for advanced, high-density power supply designs in demanding industrial applications.
Technical data
- 2:1 Entrance area
- 3kVDC/1 minute insulation
- Operating temperature range from -40°C to +70°C (full load)
- IEC/EN62368-1 2nd & 3rd Ed. certified
- UL/CSA/CAN 62368-1 certified
- Pin assignment according to industry standard (SIP8)
- Cost-effective
Product specifications
| Manufacturer | Recom |
| Design | SIP8 |
| Length | 21.8 mm |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 3 W |
| Output current | 600 mA |
| I/O isolation | 3000 VDC |
