Item ID: 48800
1.5A switching regulator, input 4 ...36V output 0.8...30V/1500mA, QFN package, tape & reel
About the product

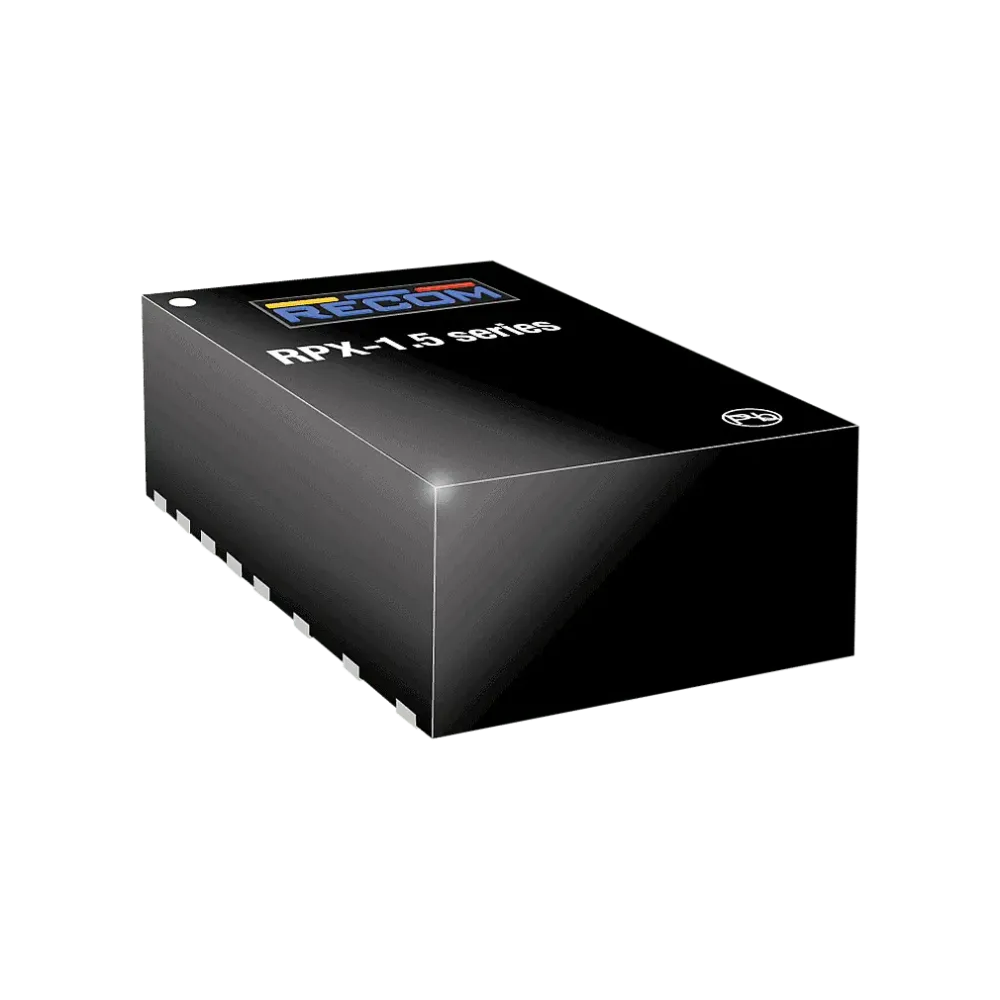

The RPX-1.5 is a step-down converter with integrated inductance in a compact, 3mm x 5mm x 1.6mm, thermally optimized QFN housing. The input range is from 4 to 36VDC, so that 5V, 12V or 24V supply voltages can be used. The output voltage can be adjusted with two resistors in the range from 0.8 to 30 VDC. The output current is up to 1.5 A and is fully protected against continuous short circuits, output overcurrent or overtemperature faults.
Technical data
- Buck regulator power module with integrated shielded inductance
- 36VDC input voltage, 1A output current
- SCP, OCP, OTP and UVLO protection
- 3.0 x 5.0 mm flat QFN housing
- Flip-chip technology for improved thermal management
- Enable, power-good, soft-start and sync functions
- Tape & Reel, 500 pieces per roll
Product specifications
| Manufacturer | Recom |
| Design | QFN |
| Output voltage (VDC) | 1.2-30 V |
| I/O isolation | not isolated |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Height | 1.6 mm |
| Width | 3 mm |
| Length | 5 mm |
| Input voltage ratio | N/A |
| Nominal input voltage (VDC) | 5-24 V |
| Power | 7.5 W |
| Output current | 1500 mA |
| Regulation | Regulated |
| Application | ITE/AV |
| Output voltage range (VDC) | 0.8-30 V |
