1W DC/DC converter, input 4.5...5.5V, output 5V/200mA, tape & reel

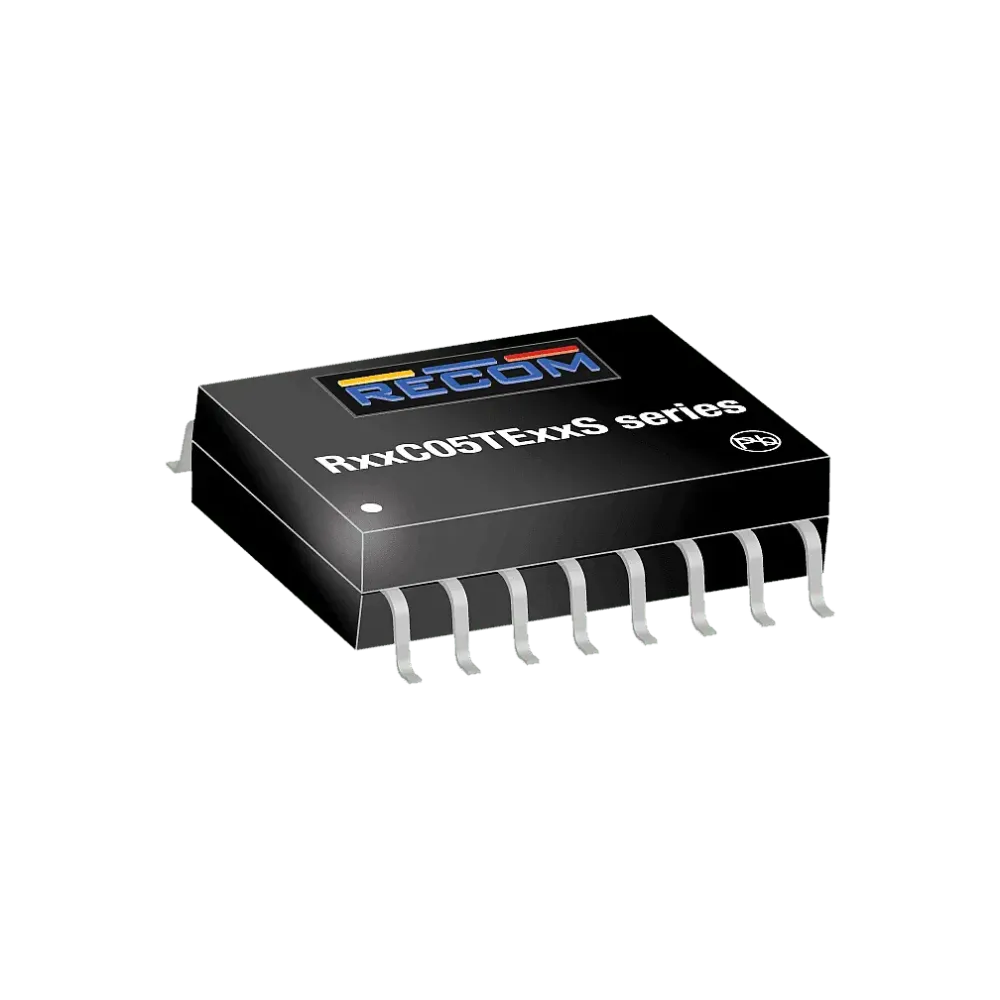

The RECOM R05CTE05S is a low cost, low profile, isolated 1W DC/DC converter in a SOIC16 SMD package with an input range of 4.5-5.5V and a semi-regulated 5V output. There is no minimum load requirement, which is ideal for applications that switch to very light load operating modes. The standard isolation is 3kVDC/1min, and the operating temperature is between -40°C and +125°C with derating. The fully automatic design, equipped with short circuit, over current and over temperature protection, ensures maximum reliability in applications such as communication, current sensing and COM port isolation.

Tape & reel packaging. Roll of 500 pieces

Technical data

• Compact 10.35 x 7.5 mm SMD housing
• Low profile (2.5 mm)
• 3kVDC/1min Insulation
• Low EMI emissions
• Ultra-wide temperature range from -40°C to +125°C
• Fully automatic, highly reliable design
• Semi-regulated 5V output
• Tape & Reel: 500 pieces per roll
