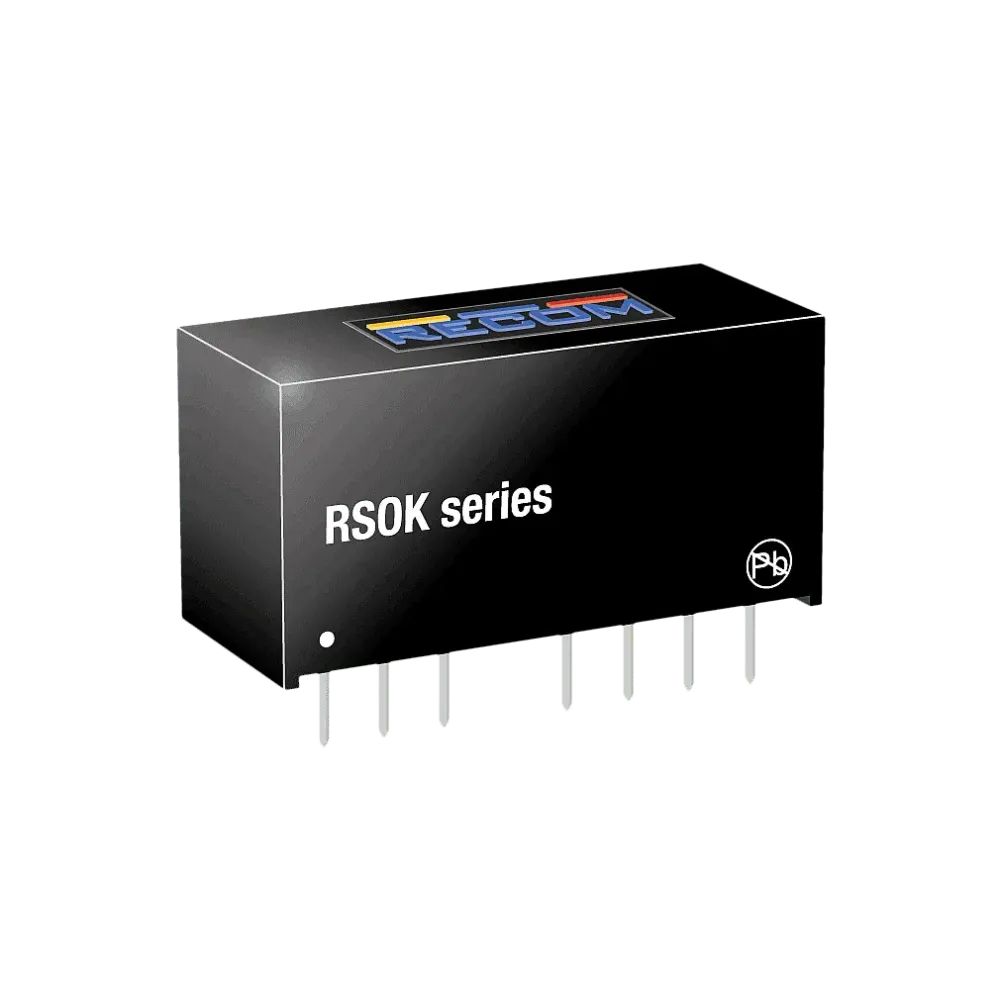

About the product
The RSOK-Z series is an innovative DC/DC converter series with a wide 4:1 input voltage range of 9-36 VDC. This converter features ON/OFF control for added convenience and precision. The RSOK-Z is characterized by high accuracy and precise line and load regulation, ensuring reliable performance even under difficult conditions. The device also features continuous short circuit protection and undervoltage lockout (UVLO) for added safety. This product is certified to the stringent safety requirements of IEC/EN/UL 62368-1, making it suitable for use in a wide range of industrial applications. With a maximum output power of 1 W and the ability to operate at 0% minimum load, the RSOK-Z is both versatile and efficient. Finally, the RSOK-Z offers a basic isolation of 3kVDC/1min and an operating range of -40°C to 90°C without derating, making it ideal for use in demanding industrial environments.
Technical data
- 4:1 wide input voltage range
- SIP8 housing
- Continuous short-circuit protection
- No minimum load required
- 3kVDC/1min Basic insulation
Product specifications
| Manufacturer | Recom |
| Design | SIP8 |
| Length | 21.8 mm |
| Output current | 200000 mA |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Power | 1 W |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| I/O isolation | 3000 VDC |
