Item ID: 48793
2.5A switching regulator, input 4.5 ...28V output 1.6...6V/2500mA, QFN package
About the product

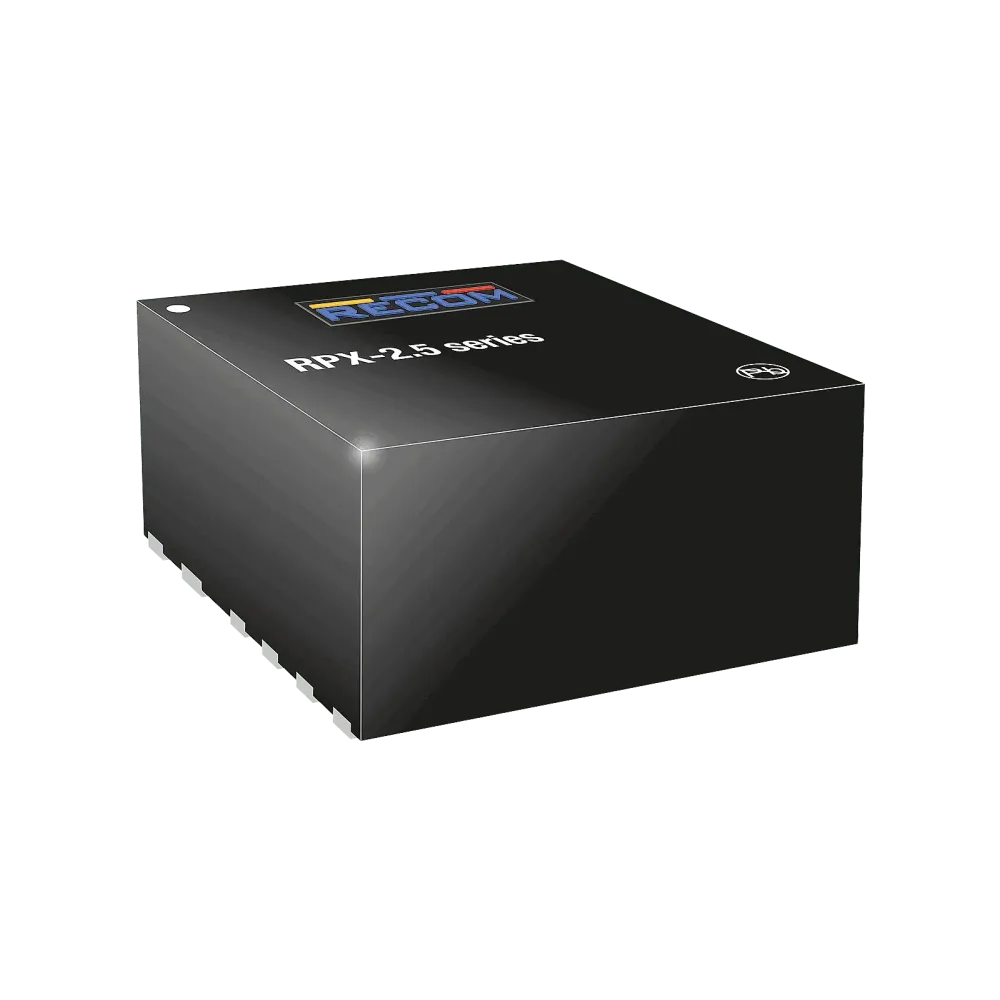

The RPX-2.5 is a step-down converter with integrated inductance in a compact, 4.5mm x 4mm x 2mm, thermally optimized QFN housing. The input range is from 4.5 to 28VDC, so that 5V, 12V or 24V supply voltages can be used. The output voltage can be adjusted with two resistors in the range from 1.6 to 6 VDC. The output current is up to 2.5 A and is fully protected against continuous short circuits, output overcurrent or overtemperature faults.
Technical data
- Buck regulator power module with integrated shielded inductance
- 28V maximum input voltage
- 2.5A maximum output current
- SCP, OCP, OTP, OVP and UVLO protection
- 4.5mm x 4mm flat QFN housing
- Flip-chip technology for improved thermal management
- Effectiveness up to 91%
- Enable, power-good, soft-start and sync functions
Product specifications
| Manufacturer | Recom |
| Output voltage (VDC) | 1.8-5 V |
| Design | QFN |
| I/O isolation | not isolated |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Height | 2.1 mm |
| Width | 4.6 mm |
| Length | 4.1 mm |
| Power | 12.5 W |
| Nominal input voltage (VDC) | 5-24 V |
| Input voltage ratio | N/A |
| Output current | 2500 mA |
| Regulation | Regulated |
| Application | ITE/AV |
| Output voltage range (VDC) | 1.6-6 V |
