About the product

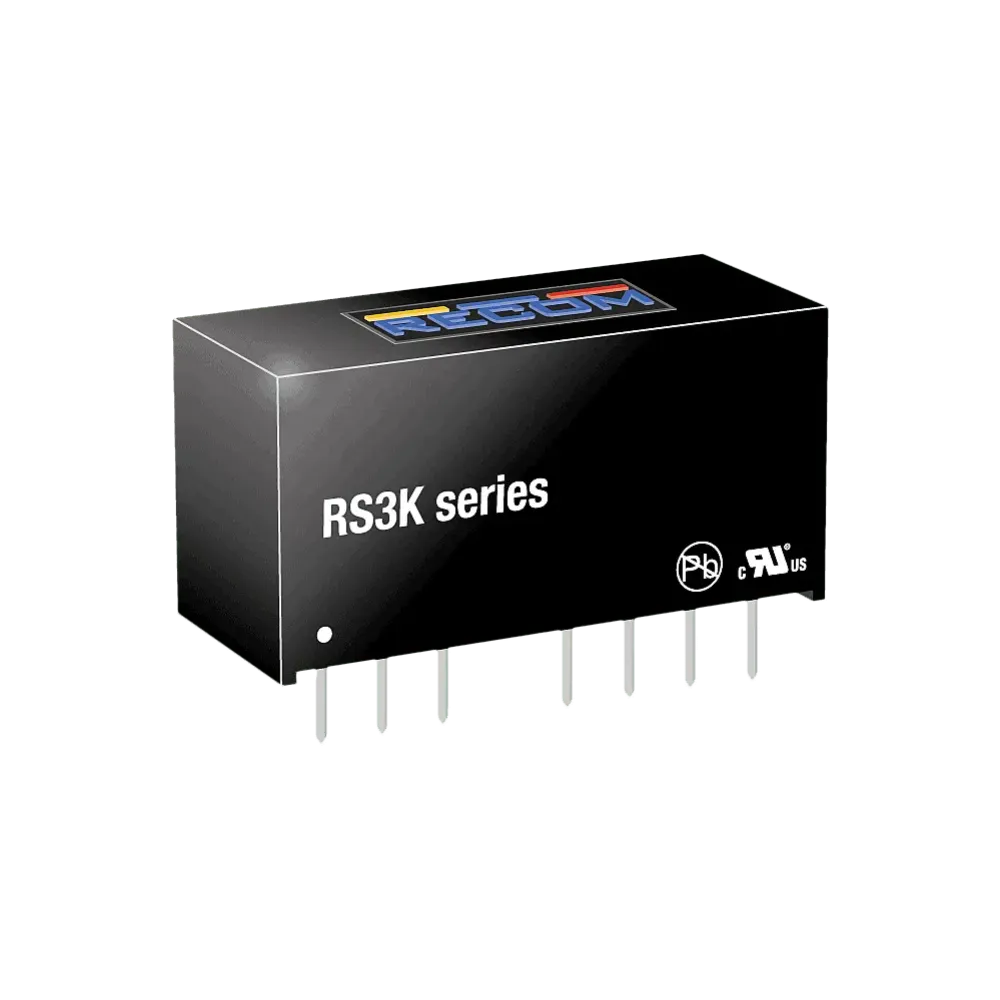

The RS3K-Z series is a state-of-the-art DC/DC converter with a wide 4:1 input voltage range from 9 to 36 VDC, ensuring reliable performance in a variety of applications. The RS3K-Z is also equipped with ON/OFF control for quick and easy power management. The high accuracy and tight line and load regulation ensure that the device operates stably even under difficult conditions. Continuous short-circuit protection and an undervoltage cut-out (UVLO) provide additional safety. With IEC/EN/UL 62368-1 certification, a maximum output power of 3 W, a minimum load of 0% and a high typical efficiency of 86%, the RS3K-Z is an excellent choice for industrial applications. The device is designed to operate within an industrial temperature range of -40°C to 80°C without derating.
Technical data
- 4:1 wide input voltage range
- SIP8 housing
- Continuous short-circuit protection
- No minimum load required
- 3kVDC/1min Basic insulation
- 86% typical efficiency
Product specifications
| Manufacturer | Recom |
| Design | SIP8 |
| Additional functions | Remote ON/OFF |
| Length | 21.8 mm |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 3 W |
| Output current | 600 mA |
| I/O isolation | 3000 VDC |
