About the product

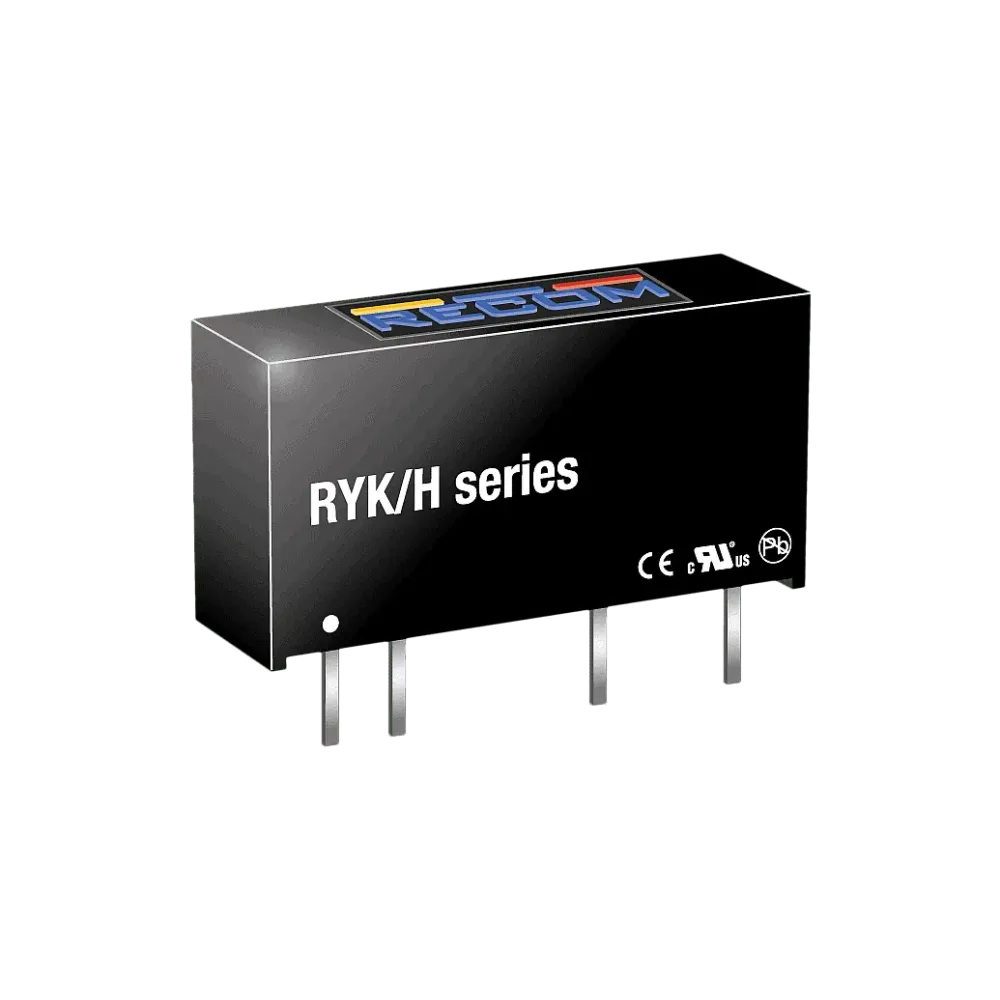

The RYK DC/DC converters are typically used in cost-sensitive applications for power isolation and voltage matching. Despite their low cost, they are fully specified converters with 4kVdc isolation, an industrial operating temperature range of -40°C to +105°C without derating and UL/EN certifications.
Technical data
- Cost-effective
- 1:1 Input voltage range
- Efficiency of up to 82
- 4kVDC/1 second insulation
- IEC/EN/UL 62368-1 certified
- -40°C to +105°C Operating temperature range
Product specifications
| Manufacturer | Recom |
| Design | SIP7 |
| Height | 14.3 mm |
| Length | 19.6 mm |
| Output current | 303 mA |
| Regulation | Regulated |
| Width | 6 mm |
| Input voltage ratio | +/-10 % |
| Nominal input voltage (VDC) | 5 V |
| Power | 1 W |
| Output voltage (VDC) | 3.3 V |
| Application | ITE/AV |
| I/O isolation | 4000 VDC |
