About the product

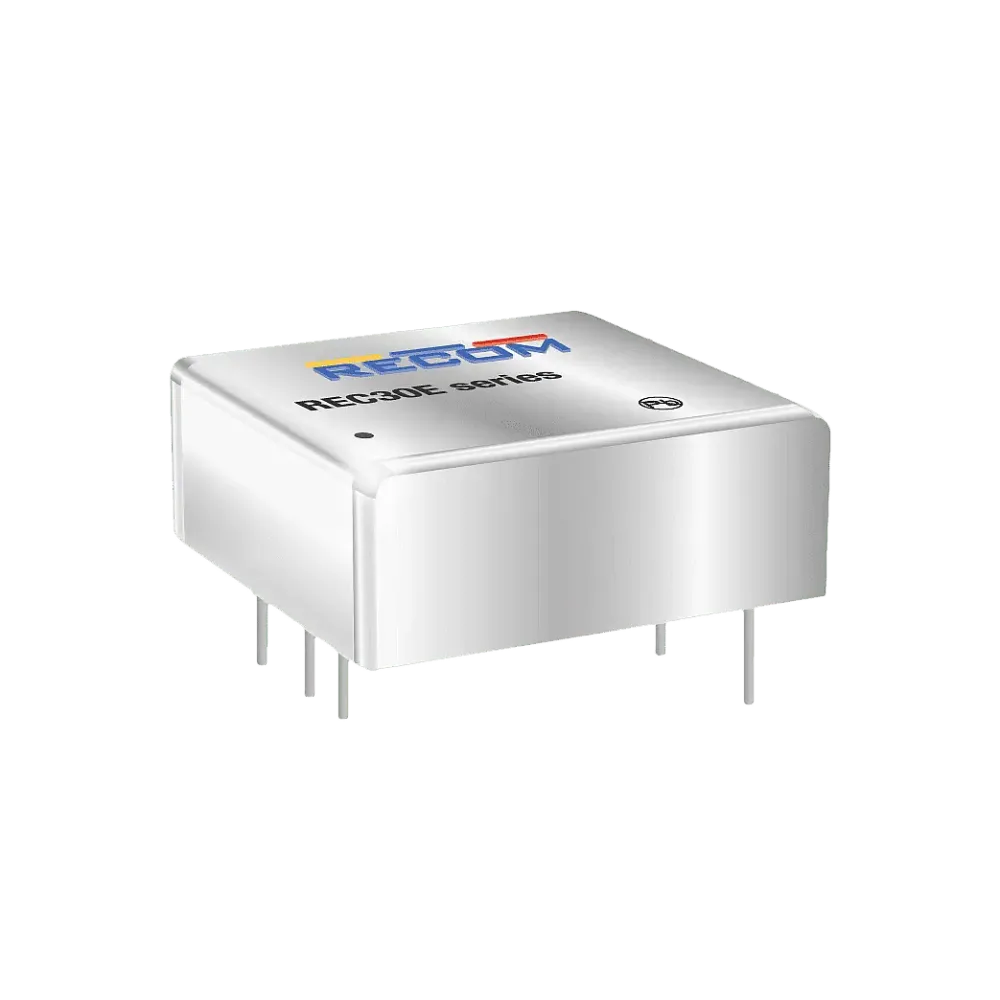

The Recom REC30E-Z series are 30 Watt DC/DC converters with high power density and a wide input voltage range in a 1x1 industry standard housing.
Despite their small size, the REC30E-Z converters are fully specified with output currents up to 7 A, over 90 % efficiency, no minimum load, 2000 VDC/1 min insulation, precise regulation and low ripple. The outputs are also fully protected against overtemperature, short circuit, overcurrent and overvoltage.
These converters are suitable for industrial applications where space on the circuit board is at a premium.
Technical data
- 30W in a 1x1 housing
- 4:1 Wide entrance area
- 2kVdc/1min Insulation
- IEC/EN62368-1 certified
- Efficiency over 90%
- OVP, OLP, OTP, UVLO
Product specifications
| Manufacturer | Recom |
| Design | 1×1 inch |
| Additional functions | Remote ON/OFF |
| Nominal input voltage (VDC) | 24-72 V |
| Output current | 1250 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Height | 10 mm |
| Length | 25.4 mm |
| Output voltage (VDC) | 12 V |
| Width | 25.4 mm |
| Application | ITE/AV |
| Power | 30 W |
| I/O isolation | 2000 VDC |
