About the product

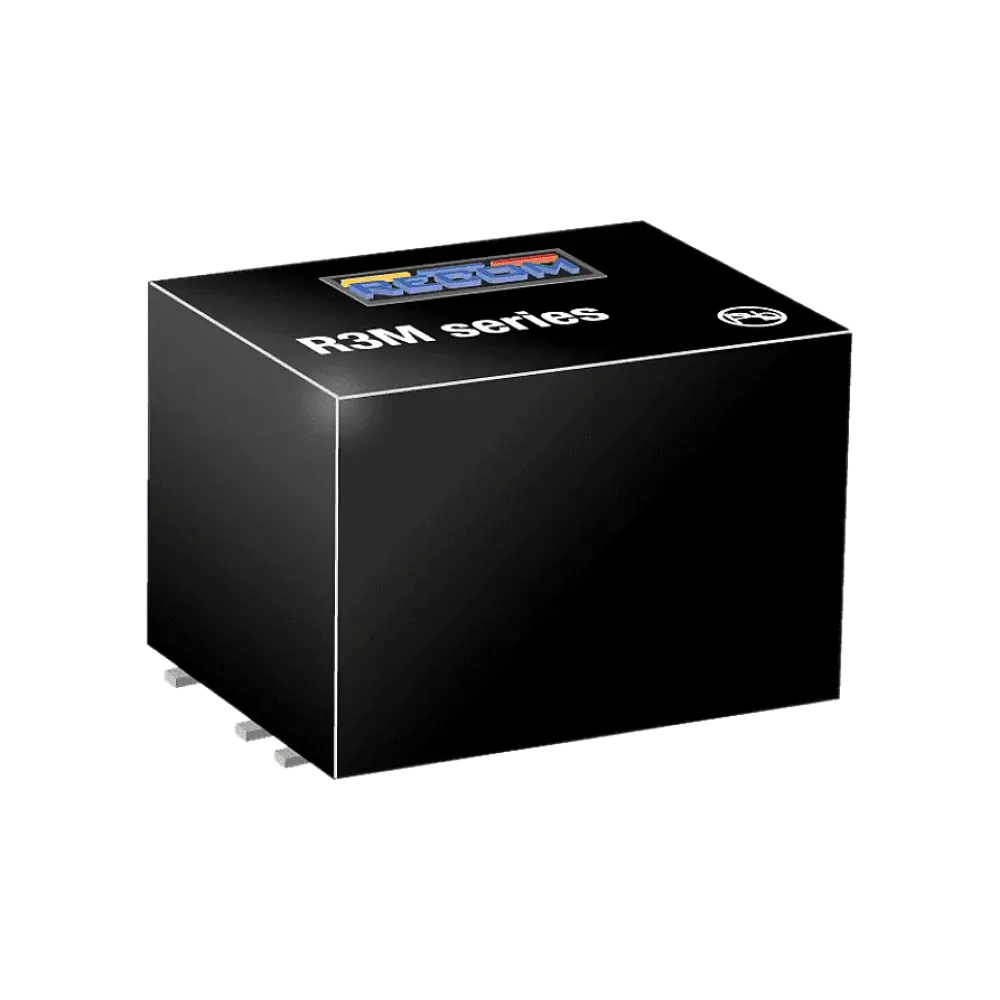

R3M is an isolated 3W DC/DC converter in a compact SMD package, available with 4:1 inputs for 5, 12, 24 and 48V voltages and offering single or dual regulated, short-circuit proof outputs. No minimum load is required. The isolation is 1.6kVDC/1min and the operating temperature ranges from -40°C to +71°C without derating. Only a few external components are required for class A and B EMC compliance.
Technical data
- 3W power in SMD housing
- 4:1 Input voltage range
- Efficiency of up to 84
- 1.6kVDC/1min Insulation
- Regulated output
- -40°C to +71°C at full load
- Permanently short-circuit protected
Product specifications
| Manufacturer | Recom |
| I/O isolation | 1600 VDC |
| Additional functions | Remote ON/OFF |
| Width | 9.1 mm |
| Length | 14.2 mm |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 3 W |
| Output current | 600 mA |
| Design | SMD8 |
