About the product

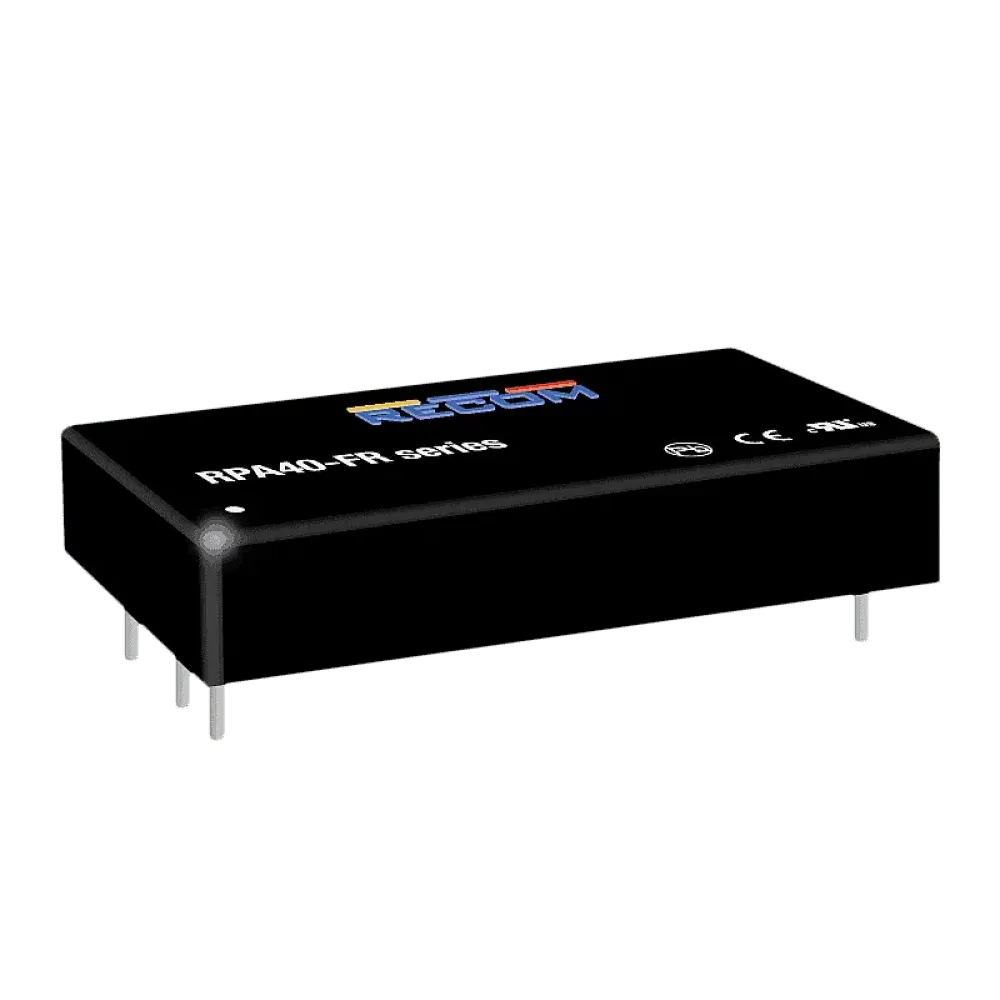

The RPA40-FR series DC/DC converters with wide input range have been specially developed for railroad applications and are certified according to EN45545-2, EN50155 and UL/EN/IEC 62368-1. With an input voltage range
input voltage range of 36 to 110VDC and a reinforced insulation barrier of up to 3kVAC/1min, these power density converters in a 2x1 housing are particularly suitable for rail vehicles.
Technical data
- 40W 2x1 DC DC converter
- Efficiency up to 90%
- Certificates EN50155, UL/EN/IEC 62368-1, EN45545-2
- For rail and industrial applications
Product specifications
| Height | 15 mm |
| Application | Railroad, ITE/AV |
| I/O isolation | 3000 VDC |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Width | 36.8 mm |
| Length | 56.4 mm |
| Output current | 3333 mA |
| Nominal input voltage (VDC) | 48-110 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Manufacturer | Recom |
| Power | 40 W |
| Output voltage (VDC) | 12 V |
| Design | 2×1 inch |
