About the product

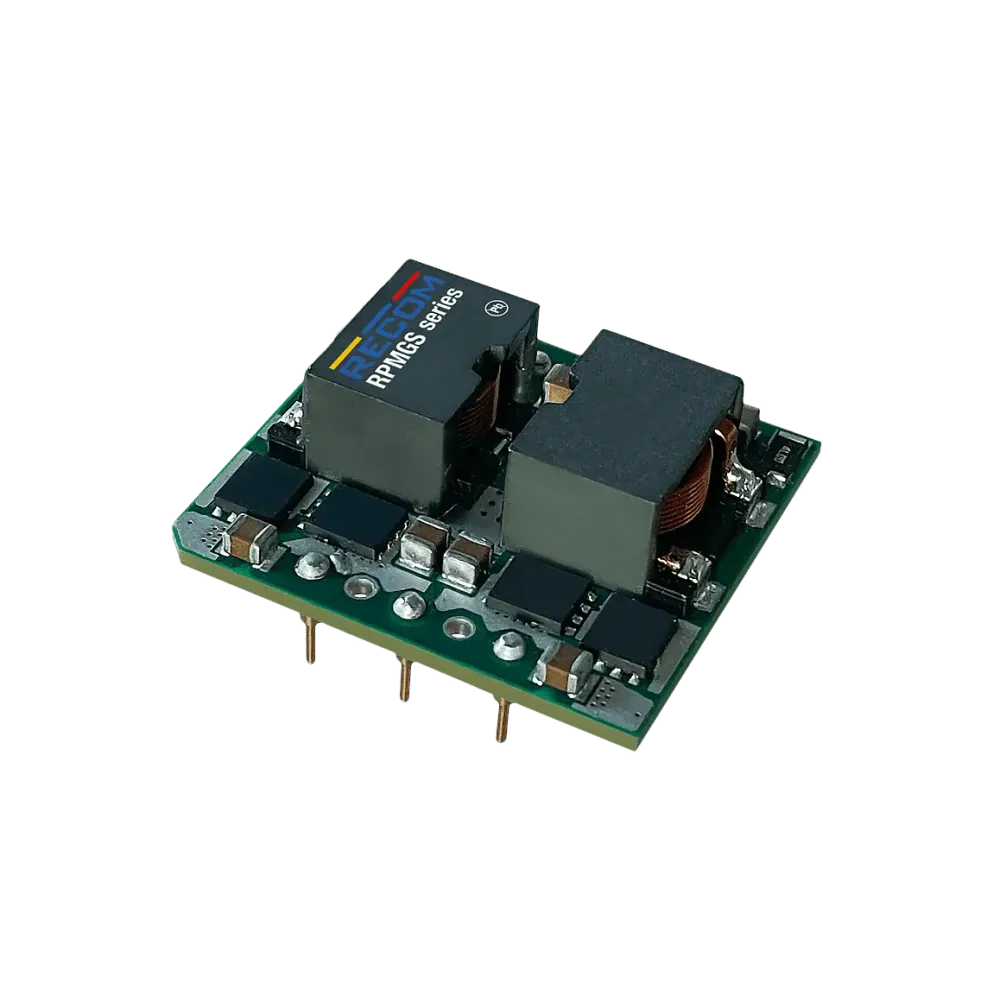

The RPMGS-20 series is a non-isolated 20A DC/DC converter in a sixteenth-brick housing. Due to the high efficiency and thermal design of the product, only minimal derating is required even at high temperatures. The device is ideal for 24V, 28V and 48V voltages as a point-of-load solution in a decentralized power architecture. Solution in a distributed power architecture. Trimmable output, remote detection and remote control functions as well as undervoltage, overload, overtemperature and short-circuit protection are standard.
Technical data
- 20A non-insulated sixteenth brick
- 18 to 75VDC wide input range
- 3.3 to 24VDC adjustable output
- Standard sixteenth brick
- High efficiency of up to 98
- Operating temperatures up to 120°C
Product specifications
| Height | 15 mm |
| Additional functions | Remote ON/OFF, Remote sense, Voltage Trim |
| I/O isolation | not isolated |
| Application | POL |
| Width | 34 mm |
| Nominal input voltage (VDC) | 24-72 V |
| Length | 36.8 mm |
| Output current | 20000 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Output voltage (VDC) | 5 V |
| Power | 100 W |
| Manufacturer | Recom |
| Design | Sixteenth brick |
